Description
Specifications
- Compatibility: Pulse-modulated line lasers with green or red diodes
- Receiver Window Height: 3.5″ (90 mm)
- Display: Dual illuminated digital displays (front and back)
- Guidance: Visual arrows and adjustable acoustic signals (105 dB loud / 85 dB quiet)
- Sensitivity: Fine 1/32″ (1 mm); Coarse 1/8″ (3 mm)
- Mounting Options: Leveling rod bracket, integrated magnets
- Protection Rating: IP66 (dustproof, waterproof)
- Power Source: Alkaine Batteries
- Operating Hours: Up to 45 hours
- Battery Status: Display included
Product Description

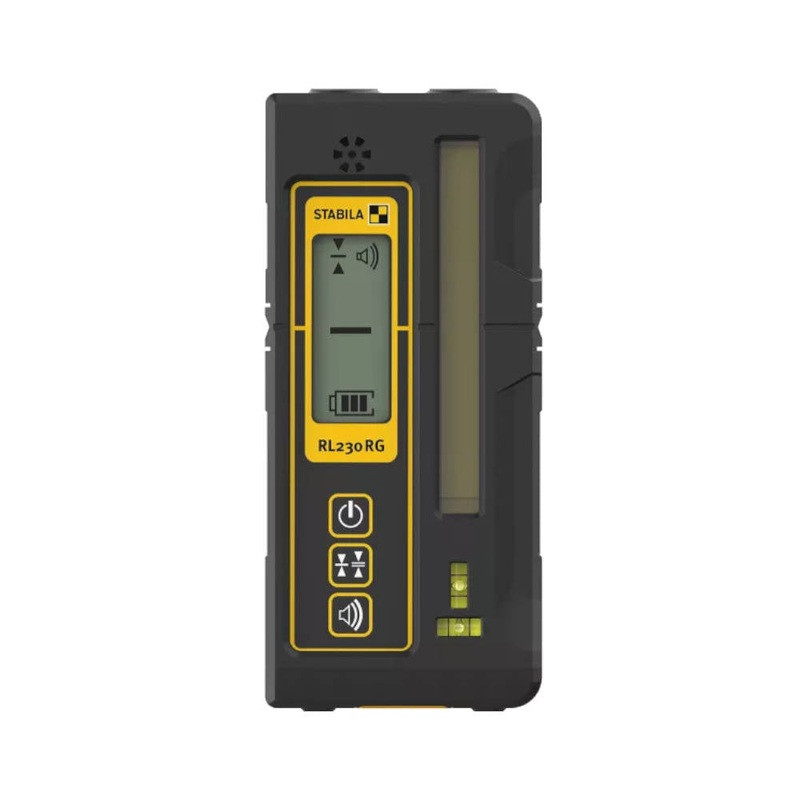

Increase your measuring range and accuracy with the Stabila REC 230 RG Line Receiver. Designed for green and red pulse-modulated line lasers, this receiver locates the exact position of the reference plane even in strong sunlight or at distances where the beam is no longer visible. The illuminated dual-side digital display ensures results are easy to read from any angle, while acoustic guidance and clear arrow symbols allow fast alignment without guesswork.
The REC 230 RG is IP66-rated for dust and water protection and built to handle jobsite conditions. It offers two sensitivity levels: Fine (1/32″ / 1 mm) for high precision or Coarse (1/8″ / 3 mm) for extended range. Compact, rugged, and long-lasting with 45 hours of runtime, the REC 230 RG is an essential addition to any line laser setup.
In the Box
- REC 230 RG Line Receiver
- Bracket
- (2)x AA Batteries
Brochures and Manuals
- REC 230 RG Line Receiver User Manual
