Description
Specifications
- Detects line, rotary, red and green lasers
- Accuracy of up to 1/64 inches
- Detectable spectrum of 450 – 800 nm
- Height difference visual display
- Additional LED display at the back for quick reading
- Audio signals with adjustable volume
- IP67 protection rating against dust and Water
Product Description

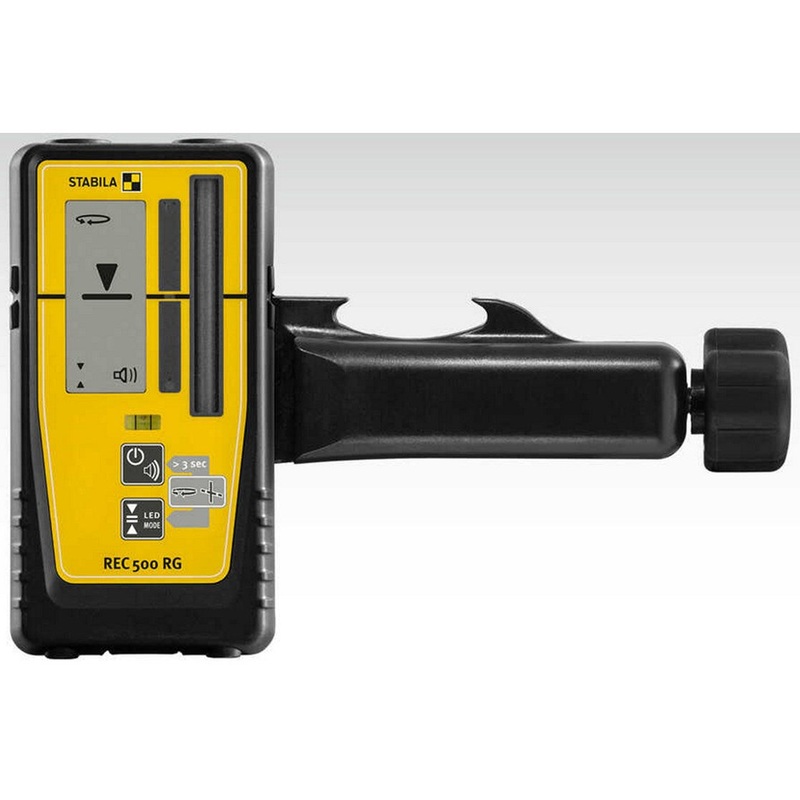

The Stabila REC 500 RG Universal Laser Receiver with Bracket has a universal design to detect line and rotary lasers of either red or green colors. It detects 450 nm – 800 nm pulse-modulated laser beams even from great distances, depending on the laser being used. Its visual display uses height difference symbols to indicate the laser alignment. For an easy and quick reading from any position, it is also equipped with an additional LED display at the back.
Efficiency: This line laser receiver by Stabila features two integrated vials to allow accurate horizontal and vertical positioning. The receiver has 4 different accuracy settings, ranging from 1/64″ in “Very Fine” mode to 13/64″ in “Very Rough” mode. For maximum efficiency, it automatically shuts off when no laser beam is detected within 30 minutes. The acoustic guidance can be activated/deactivated using the Acoustic guidance button. A change in the pitch indicates that the required positions have been exceeded and can be used to guide the operator when the receiver is not visible.
Rugged and Reliable: The Stabila REC 500 RG Universal Laser Receiver with Bracket operates for up to 50-hour runtime with the single included AA battery and enables easy power monitoring with its battery status display. It has a built-in rear magnet for attaching to metal surfaces. With the supplied bracket, it is easily mountable to leveling rods. With its IP67 protection rating, it is dust-proof and water-proof making it suitable for any job site.
In the Box
- Stabila REC 500 RG Universal Receiver
- 1x AA Battery (1.5V)
- Holding Bracket
- 2-Year Warranty
