Description
Specifications
- Complete Survey Kit : Includes total station, S80 controller, tripod, GPS pole, prism pole, magnetic bracket, and preinstalled softwareno extras needed.
- 2 Angular Accuracy : Suited for high-precision layout, control points, and complex site work.
- Long-Range EDM : Measures up to 3,500 m with a prism and 800 m reflectorlessly with 1 mm + 1 ppm precision.
- Robotic with 360 Auto Targeting : Quickly finds and locks onto the prism for smooth one-person operation.
- Dual-Axis Tilt Compensation : Maintains measurement accuracy on uneven terrain using liquid photoelectric sensors.
- Preconfigured S80 Tablet : Comes ready with Cube-a TS-GPS v7.x software for total station control, COGO tools, GNSS integration, and CAD support.
- Laser Plummet Setup : Integrated 635 nm laser simplifies precise station centering.
- Reliable Connectivity : Bluetooth (300 m), 4G LTE, Wi-Fi, and USB OTG streamline control and file sharing.
- 6-Hour Runtime : Rechargeable Li-Ion battery powers full field sessions and recharges quickly.
- Ample Onboard Storage : 4GB RAM / 64GB ROM for storing survey data, job files, and large CAD layouts.
Product Description

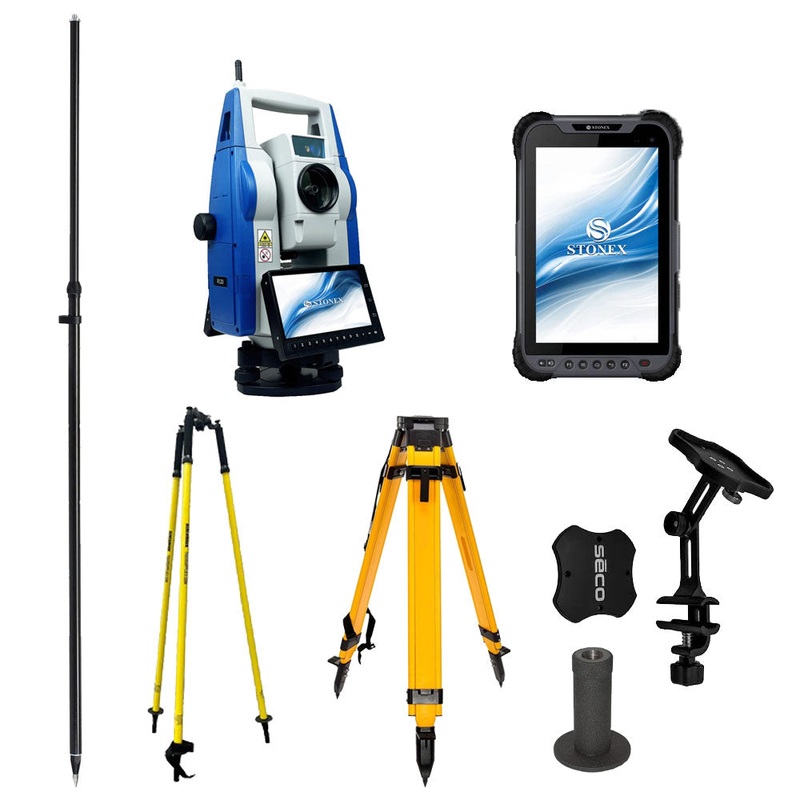

In the Box
- (1) R120 Total Station (2″, 800m, Android, Endless)
- (1) S80 Rugged Tablet
- (1) C400 (small) MagPad Magnetic Pole Bracket, Short Arm
- Cube-a GPS v7.x Data Collection Software
- (1) Wide Base Topo Shoe
- (1) 2M Carbon Fiber 2-Section GPS Pole w/ Snap Lock
- (1) Aluminum Prism Pole Tripod – Yellow
- (1) -30/0mm Prism (30-030004)
