Description
Specifications
- Angle Accuracy: 1″ (0.1″)
- Distance Range: Up to 6,000 m with prism; 1,000 m reflectorless
- Distance Accuracy: 1 mm + 1 ppm (prism); 2 mm + 2 ppm (reflectorless)
- Rotation Speed: 180/sec (Tdrive motor, gearless)
- Telescope: 30x magnification; 130 field of view; min focus 1.5 m
- Tilt Sensor: Dual-axis, 3.0, 1 accuracy
- Displays: Dual 6 color LCD, 720×1280 px, touch-enabled
- Operating System: Android with Cube-a onboard
- Memory: RAM 3 GB, ROM 32 GB
- Interfaces: RS-232, Micro USB, Bluetooth long range, Wi-Fi, 4G
- Additional Features: Built-in camera, Fast360 prism search, Automatic Prism Centering, OnePole Solution, guide light
- Environmental Protection: IP65/IP66
- Battery: 14.4V, 6400 mAh Li-ion (2 included)
- Operating Hours: Up to 6 hours per battery
- Operating Temperature: -4F to 122F (-20C +50C)
- Weight: 20.5 lbs. (9.3 kg) (including battery)
Product Description

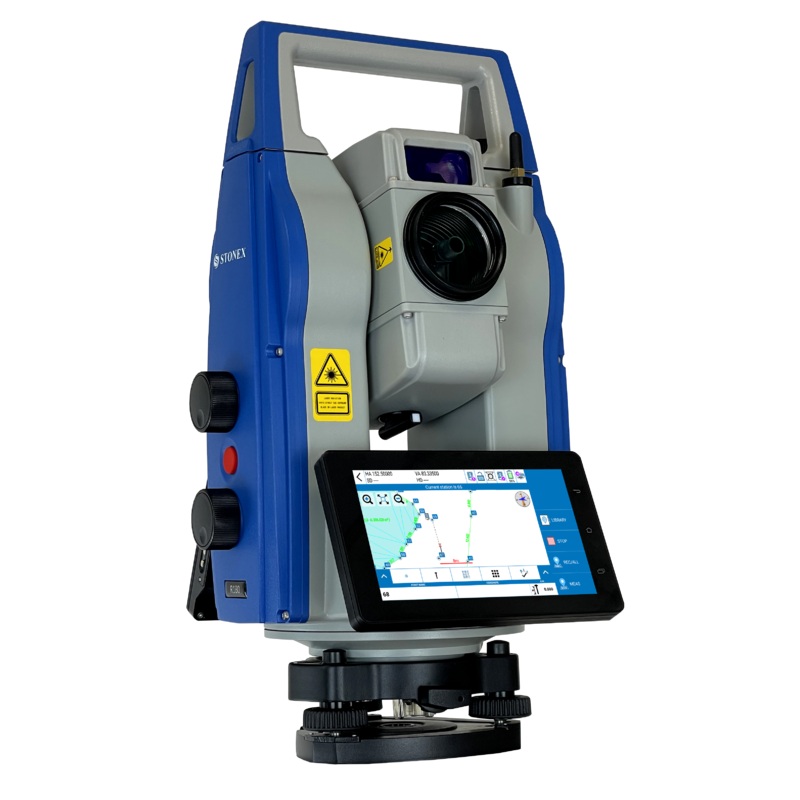

The Stonex R180 Robotic Total Station delivers speed, precision, and reliability for modern surveying workflows. Featuring Tdrive motorization with a 180/sec rotation speed, it ensures frictionless, quiet movement with minimal maintenance. It delivers 1 mm + 1 ppm accuracy with prism and up to 1,000 m reflectorless range.
With dual 6″ touch screens running Android, the R180 comes with Cube-a software onboard for seamless GNSS and total station integration. Advanced features include Fast360 prism search, Automatic Prism Centering, and the OnePole Solution streamline fieldwork, while the built-in camera aids collimation and point verification.
In the Box
- R180 Total Station
- Tools bag
- Target sheet
- Battery Li-64
- Adapter + Cable EU and US
- (2)x Strap of carrying case
- Carrying case
- (2)x Silica gel
- Rain cover
- Targets
- Pen Drive set 8Gb with Manual & Video Tutorial
