Description
Specifications
- Angular Accuracy: 2 (absolute encoder)
- Distance Range: Reflectorless up to 600 m; up to 5,000 m with single prism
- Distance Accuracy: 2 mm + 2 ppm (prism), 3 mm + 2 ppm (reflectorless)
- Telescope: 30x magnification, 130 FOV, 1.7 m minimum focus
- Tilt Sensor: Dual-axis, 4 range, 3 accuracy
- Displays: Dual 320×240 color LCD, alphanumeric
- Onboard Programs: Stakeout, offset, MLM, remote height, area, resection, reference line
- Memory:>80,000 points
- Connectivity: USB 2.0, Bluetooth 5.0
- Power Source: 7.4V, 2600 mAh Li-ion
- Operating Hours: 20+ hours
- Environmental Protection: IP65
- Operating Temperature: -4F to 122F (-20C to +50C)
- Weight: 12.34 lbs (5.6 kg) (with battery and tribrach)
Product Description

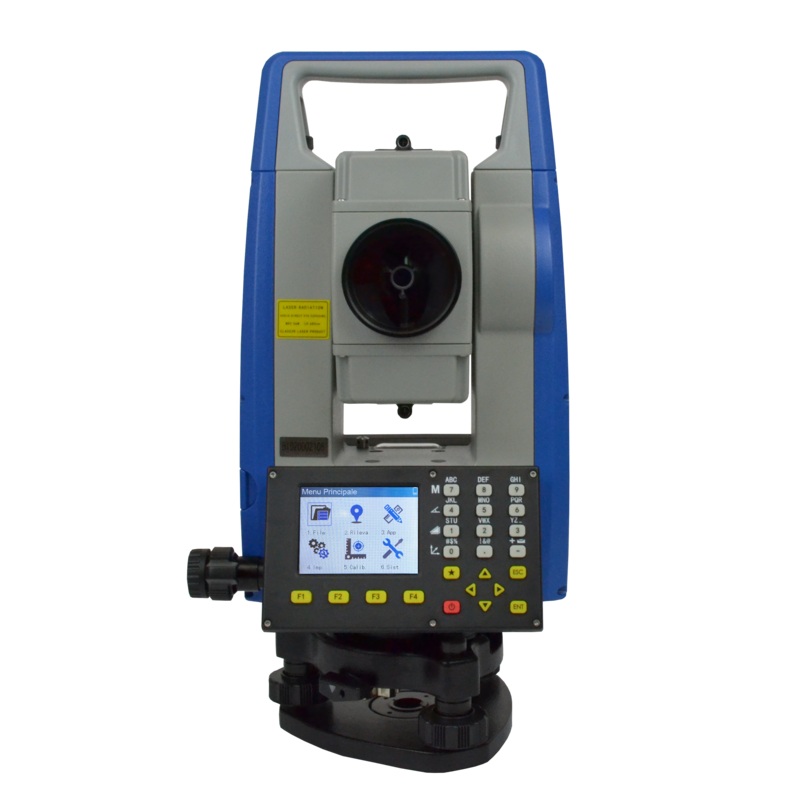

The Stonex R20 Total Station (600 m, 2 accuracy) is a reliable choice for standard surveying and construction tasks. Offering reflectorless measurements up to 600 m and prism measurements up to 5,000 m, it ensures dependable results with 2 mm + 2 ppm prism accuracy and 3 mm + 2 ppm reflectorless accuracy. Its dual-axis compensator improves precision across uneven terrain, while temperature and pressure sensors maintain measurement consistency in changing environments.
This total station features intuitive onboard software with programs for stakeout, resection, reference line, offset measurement, and more. It includes dual 320×240 LCD color displays, a trigger key for quick measurements, and an IP65-rated housing that protects against dust and rain.
In the Box
- R110 Total Station
- R20 Lithium Battery
- R20 Charger
- R20 Carrying Case
- R20 Rain Cover
- Tribrach
- Tools kit
- Cleaning Brush
- (4)x Reflective sheet RP30
- (1)x Reflective sheet RP60
- SW Cube-link
- Pen Drive set 8Gb with Manual & Video Tutorial
