Description
Specifications
- Angular Accuracy: 0.5 or 1
- Distance Range: Up to 5,000 m (prism), 1,000 m (reflectorless)
- Distance Accuracy: 2 mm + 2 ppm (prism), 3 mm + 2 ppm (reflectorless)
- Motorization: Gear drive, 35/sec speed, locks onto prisms moving at 50 km/h
- Compensator: Quadruple-axis, 3.0 range
- Telescope: 30 magnification, 120 field of view, 45 mm aperture
- Display: Dual 3.5 color TFT LCD, touchscreen
- Platform: Windows CE 7.0, 4 GB internal memory
- Power Source: 7.4V/5.8Ah Li-ion Battery
- Operating Life: Up to 8 hours
- Protection Class: IP55 rated
- Operating Temperature: 4F to +122F (20C to +50C)
Product Description

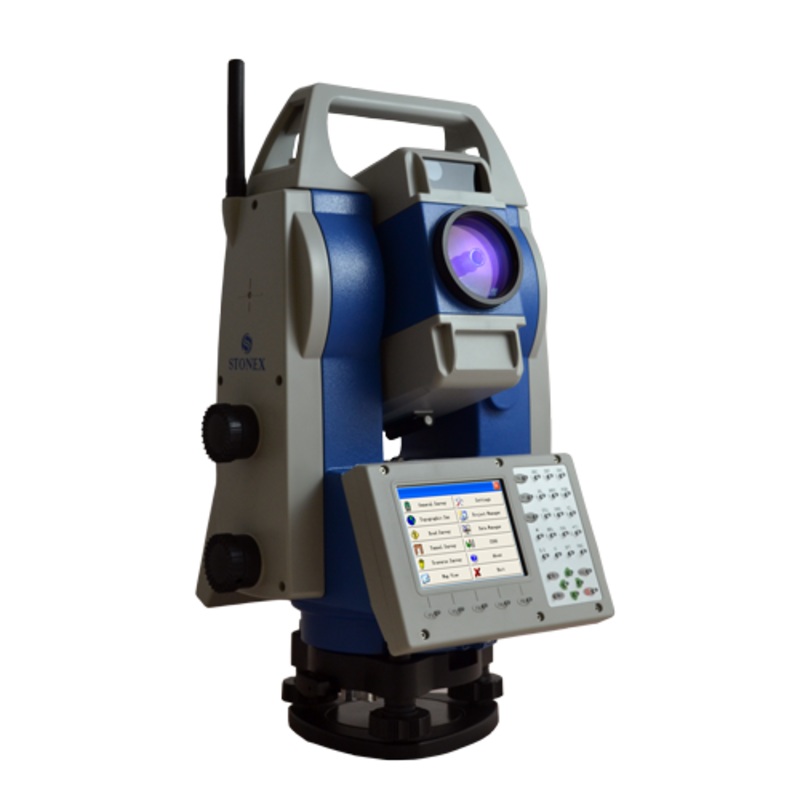

The Stonex R80 Robotic Total Station is a high-precision, motorized surveying instrument built for demanding tasks in construction layout, structural monitoring, and topographic data collection. With sub-arcsecond angular accuracy and a long-range EDM (up to 5,000 m with prism and 1,000 m reflectorless), it delivers reliable performance even in challenging environments.
Featuring a fast and precise motorized drive, the R80 can track moving targets up to 50 km/h and rotate at 35/sec for efficient stakeout. Its 45 mm aperture lens, quad-axis tilt compensator, and built-in sensors maintain stability and accuracy over time.
Running on Windows CE 7.0 with Stonex Cube-a software, the R80 provides a user-friendly interface for CAD integration, COGO functions, and surface modeling. The high-visibility dual displays, USB/Bluetooth connectivity, and IP55-rated construction make it a rugged yet intelligent solution for professional surveyors.
In the Box
- Stonex R80 Robotic Total Station
- Tribrach for RXX Series
- R80 Li-Ion Rechargeable Battery (BT91L)
- Battery Charger for BT91L
- USB Cable (UC-TS1)
- Long-Range Bluetooth Module
- Stylus
- Rain Cover
- Tools Kit & Cleaning Cloth
- Reflective Sheet RP30 4, RP60 1
- Cube-Link Software
- 8 GB USB Drive with Manual & Video Tutorial
- Hard Carrying Case
