Description
Specifications
- Satellite Constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS
- Frequency Bands: L1, L2, L5 / B1, B2, B3 / E1, E5, E6
- Update Rate: 20 Hz
- IMU Tilt Compensation: Up to 60
- Accuracy: H: 8mm + 1ppm; V: 15mm + 1ppm
- IP Protection: IP68; 1.5m Drop-tested
- Power Source: 3.6V/12Ah Internal Battery
- Operating Hours: Up to 10 hours
- Operating Temperature: 40F to +149C (40C to +65C)
Product Description

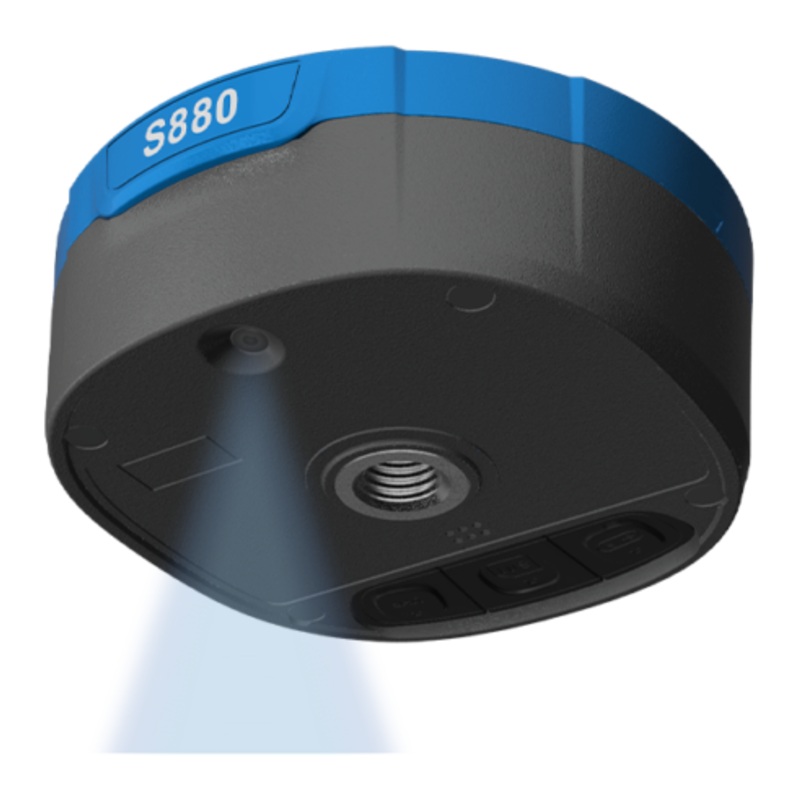

The Stonex S880 is a compact, high-performance GNSS receiver designed for demanding surveying, mapping, and navigation tasks. Equipped with a built-in AR stakeout camera, it enables visual, real-scene navigation using Cube-a softwareguiding users directly to target points through graphic overlays and distance indicators.
The S880 supports all major satellite constellations including GPS, GLONASS, Galileo, BeiDou, QZSS, and IRNSS, and is capable of 20Hz position updates for real-time precision. Its integrated IMU compensates for pole tilt up to 60, improving speed and accuracy in the field.
With an IP68 rating, 2W UHF radio, and an internal 4G modem, the S880 ensures robust performance and communication in harsh environments. The 2MP camera, 8GB memory, 10-hour battery life, and 730g lightweight design make it suitable for both static and dynamic applications. It also offers advanced post-processing and PPP capabilities, delivering centimeter-level accuracy under most conditions.
In the Box
- S880 instrument unit
- Power adapter with 4 plugs
- Charging Cable, Type C -Type C
- TyC-USB cable 1.5 m
- Carrying case for S700A/S850A (CC-700)
- AR-100 UHF antenna, 430-470 MHz, TNC, 10cm
Brochures and Manuals
- Stonex S880 GNSS Receiver Product Datasheet
