Description
Specifications
- Frequency Range: 410470 MHz
- Operating Modes: Transmitter, Receiver, Repeater
- Transmission Power: Selectable 0.5 W2 W (up to 10 km range)
- Power Stability: 1 dB
- Frequency Stability: 1 ppm
- Protocols: Transparent EOT, Trimmark3, Trimtalk, Satel
- Channel Width: 12.5/25 kHz
- Modulation: GMSK, 4FSK
- Air Data Rate: 4800/9600/19200 bps
- Serial Data Rate: 9600115200 bps
- Sensitivity: -114 dBm @ BER 10, 9600 bps
- Adjacent Channel Selectivity:>50 dB @ 25 kHz
- Interfaces: RS-232 (Spin Lemo), Bluetooth 2.0/2.1, TNC antenna port
- Display: 1.9″ LCD with navigation buttons
- Ingress Protection: IP67
- Power Source: 6,800 mAh Li-ion
- Operating Hours: Up to 8 hours
- Charging Time: ~8 hrs
- External Power: 69 V DC input
- Operating Temperature: -22F to +131F (-30C to +65C)
- Weight: 0.79 lbs.
Product Description

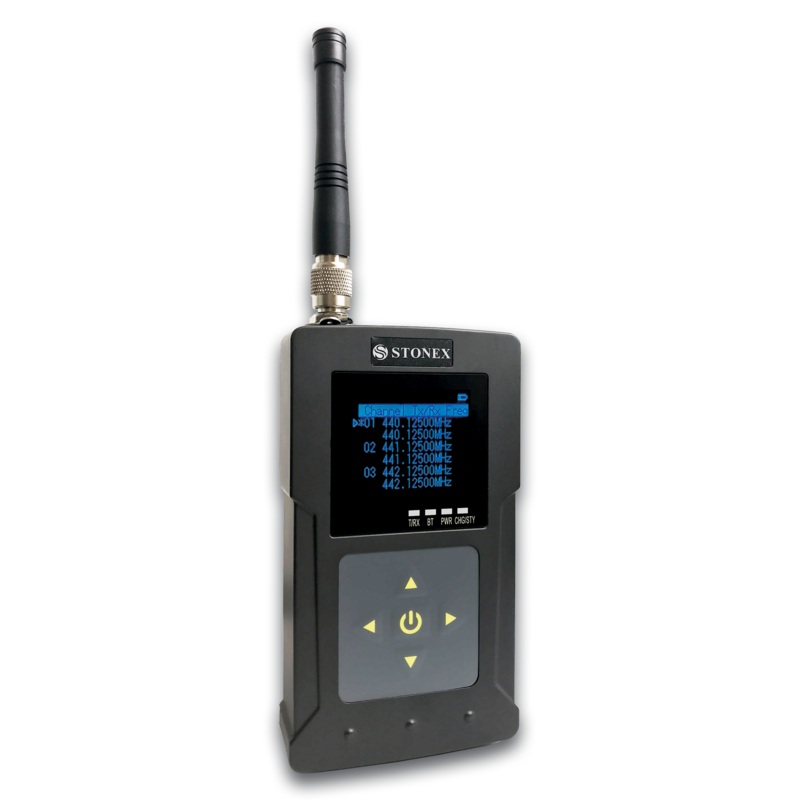

The Stonex SR02 is a high-power 2W radio modem designed to transmit RTK corrections from a GNSS base station to rovers with reliable performance over long distances. Its user-selectable transmission power ranges from 0.5 W to 2 W, providing coverage of up to 10 km. Fully compatible with external and integrated GNSS radios, it supports multiple protocols (Trimtalk, Trimmark3, Satel), modulation types, and channel widths for flexible operation.
The SR02 can be used as a transmitter, receiver, or repeater, extending RTK coverage in demanding environments. It includes a built-in Bluetooth module that transforms GNSS receivers into base/rover configurations without cables. A rechargeable 6,800 mAh Li-ion battery provides up to 8 hours of operation, and the integrated LCD display makes setup quick and straightforward. With IP67 protection, SR02 weighs just 0.79 lbs.
In the Box
- SR02, Power Adaptor with 4 plugs
- SR02, Serial cable 5pin Lemo/9pin
- UHF antenna, 430MHz-450MHz, TNC, 29cm (AR-430)
