Description
Specifications
- Frequency Range: 410470 MHz
- Operating Modes: Transmitter, Receiver, Radio Repeater, Network Repeater
- Transmission Power: 5 W / 22 W / 35 W selectable
- Coverage: Up to 50 km
- Channels: Up to 200 programmable
- Protocols: Transparent EOT, Trimmark, Trimtalk, Satel
- Modulation: GMSK, 4FSK
- Channel Width: 12.5 / 25 kHz
- Air Data Rate: 4800 / 9600 / 19200 bps
- Serial Data Rate: 9600115200 bps
- Sensitivity: -114 dBm @ BER 10, 9600 bps
- Interfaces: RS-232 (LEMO Spin), Bluetooth 2.0/4.0, TNC antenna port
- Power Supply: 916 V DC, 85 W max @ 12V
- Ingress Protection: IP67
- Operating Temperature: -40F to +167F (-40C to +75C)
- Weight: 4.40 lbs
Product Description

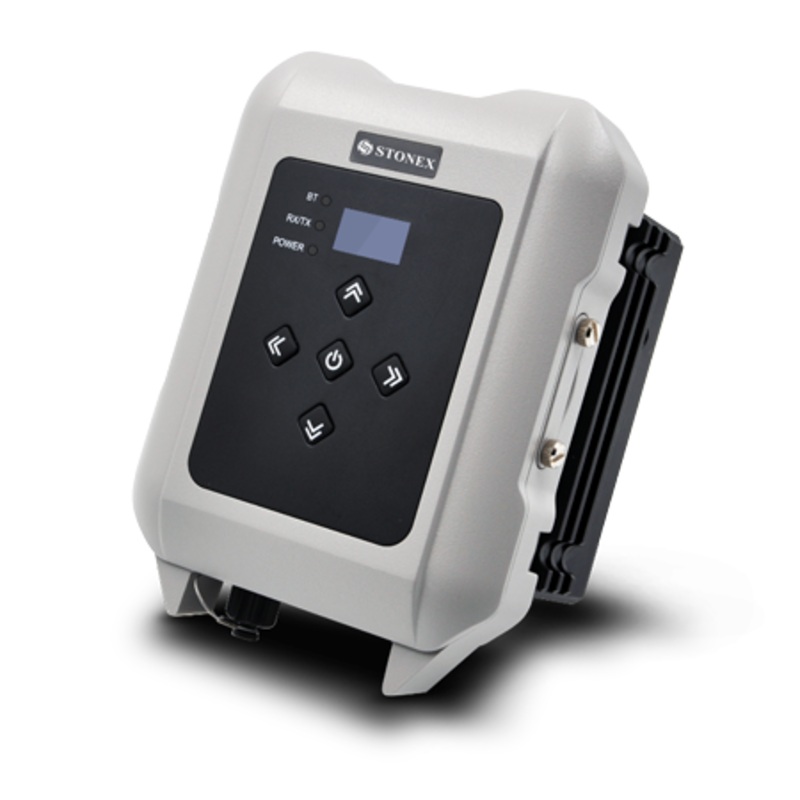

The Stonex SR35 is a high-power radio modem designed to extend RTK correction coverage for GNSS base and rover setups. With selectable transmission power from 5 W to 35 W, it reaches distances of up to 50 km. Multiple operating modes transmitter, receiver, repeater, and network repeater make it adaptable for a wide range of surveying and monitoring applications. The network repeater function bridges GSM and UHF by receiving RTK corrections through the integrated 4G modem and retransmitting them via radio.
The SR35 supports up to 200 programmable channels and is compatible with leading protocols (Trimtalk, Trimmark3, Satel, Transparent EOT). Configuration is simple through PC software or the dedicated Android app, while Bluetooth ensures quick connectivity. Its rugged IP67-rated housing protects against dust, water, and extreme temperatures.
In the Box
- SR35 Modem
- Cable with clamps (30-350072)
- Cable (5pin Lemo/5pin Lemo/SAE to connect GPS to ext. radiomodem/ext.battery)
- Cable to connect receiver and external radio
- Holder for QC430/450A antenna on tripod (TRB1)
- Soft bag for GNSS and controller (SB-100)
