Description
Specifications
Amplifier:
- Amplification: 56 dB 3%
- Frequency Range: 100 Hz to 1,500 Hz
- Filters: 5 High-Frequency Filters; 3 Low-Frequency Filters; 2 Notch Filters
- Power Supply: Two AA batteries
- Battery Life: 30 hours
- Weight: 0.507 lb (230 gm)
- Dimensions: 5.7″ W 3″ H 1.25″ D
Headphones:
- Impedance: 20 ohms
Carrying Case:
- Material: ABS plastic
- Weight (Full): 5.84 lbs (2.65 kg)
- Dimensions: 14″ W 10.5″ H 6″ D
Product Description
The LD-7 Acoustic Water Leak Detector from SubSurface Instruments is a compact, easy-to-use solution for basic water leak surveys and pinpointing. Designed for occasional or entry-level users, the LD-7 features a palm-sized amplifier that weighs just 8 pounds and delivers up to 56 dB of amplification to isolate leak sounds clearly.
Its push-button mute switch protects the operators hearing by muting sound during sensor repositioning and activating it only when needed. The system includes a 3-point ground plate for pinpointing leaks on pavement or concrete, plus a magnetic base and contact rod for surveys at hydrants, valves, and meters.
Advanced filtering blocks out environmental noise such as wind, traffic, and nearby machinery. With 5 high-frequency filters, 3 low-frequency filters, and 2 notch filters, the LD-7 ensures cleaner audio in challenging environments. The included stereo headphones feature soft leather ear pads for comfort during extended use.
Powered by two AA batteries, the LD-7 offers up to 30 hours of continuous operation. All components come packed in a heavy-duty ABS case compact enough to store behind a truck seat or in a small cabinet.

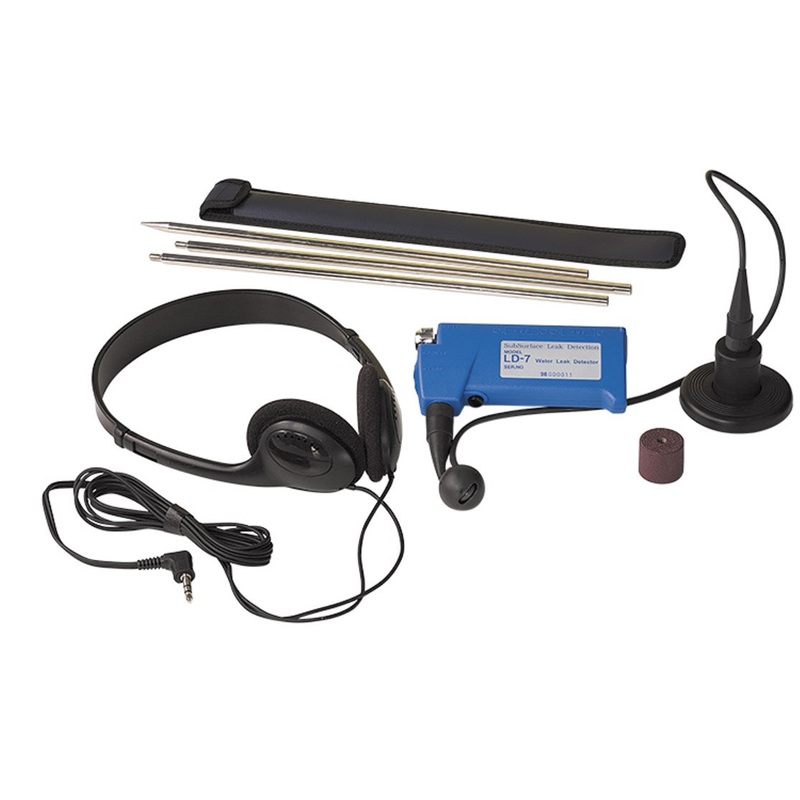

In the Box
- Amplifier w/volume & mute switch
- Sensor w/3 point ground plate
- Stereo headphones
- Magnet Base
- ABS plastic custom carrying case
- 3-section contact rod
- Instruction Manual
Brochures and Manuals
- SubSurface LD-7 Water Leak Detector Product Datasheet
