Description
Specifications
- Camera: 28 mm self-leveling, stainless steel, sapphire glass lens
- Certification: IP68 waterproof (submersible)
- Sonde: 512 Hz built-in
- Lighting: 12 white LEDs
- Resolution: PAL 720576, NTSC 720480
- Viewing Angle: 120
- Cable: Fiberglass rod, 7 mm dia., lengths 60 m (std), 70 m/80 m optional
- Monitor: 9″ digital color, 16:9/4:3, 1440234 pixels
- Recording: Snap photos, record video (AVI), SD card up to 32 GB
- Battery: Rechargeable Li-ion, 260 minutes runtime, 5-hour charge
- Control Box: 12V supply, 200 mA, DVR 720576
- Accessories: Two skids (40/90 mm), standard US keyboard, carrying case
- Case Size: 460 370 180 mm (engineering plastics)
- System Weight: Lightweight reel design
- Warranty: 1-year limited
Product Description

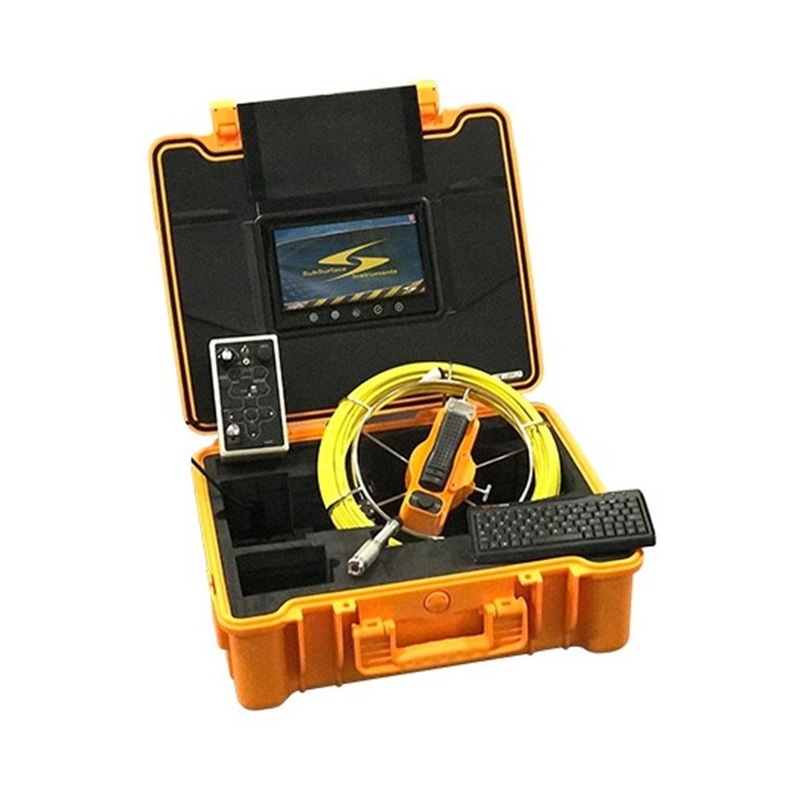

The IC-28 Pipe Inspection Camera System is a professional solution for inspecting pipes, drains, and conduits before excavation. Its 28 mm self-leveling stainless steel camera head is IP68 certified, built with sapphire glass for durability, and equipped with a 512 Hz sonde for easy location using a pipe and cable locator (sold separately). Twelve high-intensity LEDs provide superior illumination, ensuring clear HD video and images even in dark, confined spaces.
Mounted on a lightweight reel with a 60 m 7 mm fiberglass push cable (70 m and 80 m available), the IC-28 is designed to navigate pipe corners smoothly with its flexible coil design. Operators can record video or capture stills directly to an SD card, while monitoring in real time on the 9″ digital display. Powered by a long-lasting lithium-ion battery, the system includes dual skids, a protective carrying case, and a standard US keyboard for field documentation.
