Description
Specifications
PL-TT Receiver
- Operating Frequencies: 512Hz to 131kHz
- Display Indicators: Bar graph, low battery, signal strength, mode
- Dynamic Range: 126 dB
- Power Source: Alkaline Battery
- Battery Life: Up to 60 hours
- Material: Carbon Fiber
- Operating Temperature: -4F to +133F (-20C to +55C)
- Dimensions: 33.3″ 3.4″ (77 cm 24 cm)
- Weight: 1.26 lbs (0.57 kg)
PL-VF3 Transmitter
- Output Power: 3w
- Operating Frequencies: 512Hz to 131kHz
- Power Source: Alkaline Battery
- Ingress Protection: IP65
- Operating Temperature: -4F to +133F (-20C to +55C)
- Dimensions: 8.5″ 5.8″ x 2.5″ (21 cm 15 cm x 6 cm)
- Weight: 2.2 lbs (1 kg)
Product Description

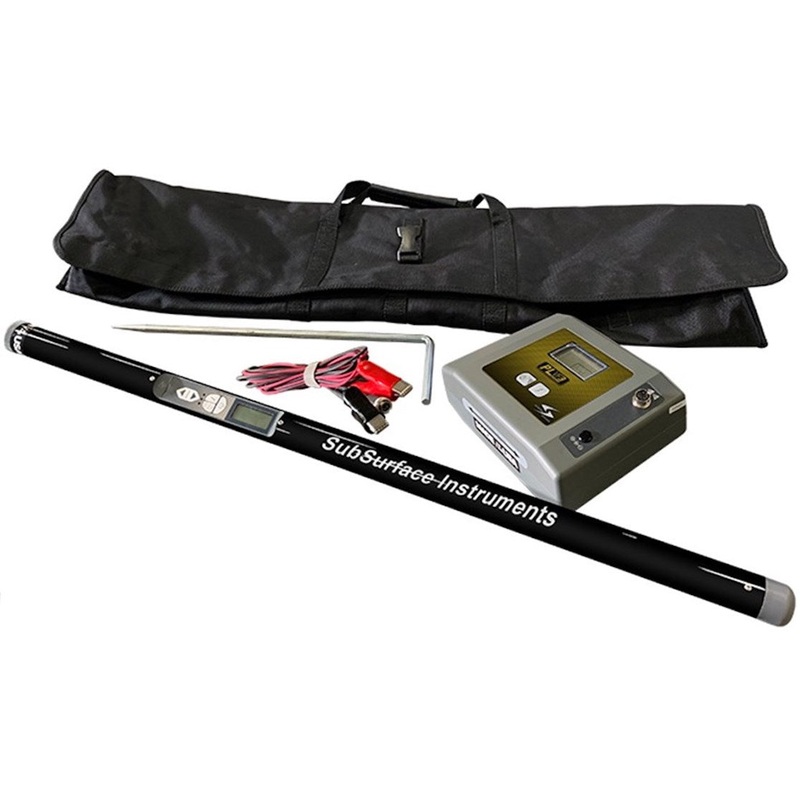

The SubSurface PL-TT Pipe and Cable Locator System combines precision, durability, and ease of use in one rugged system.
The PL-TT Receiver supports 4 standard frequencies815Hz, 8kHz, 33kHz, and 82kHzand includes a 512Hz sonde mode and a ferrous metal detection mode for locating iron-containing metals. With push-button digital depth and a built-in LCD screen, users can view real-time signal strength, depth, and detection mode with ease. It offers four locating modes and operates on 8 C-cell batteries for up to 60 hours of use.
The 3-watt transmitter applies signals through induction, coupler, or direct connection, with automatic impedance matching (525,000 ohms) to extend range and optimize battery life. It runs on 6 AA batteries with up to 15 hours of operation. Together, the system delivers dependable performance even in interference-heavy or challenging environments.
The PL-TT system also functions as a magnetic locator, making it a versatile tool for detecting both utilities and ferrous objects. With its carbon fiber housing and weather-sealed design, its built to withstand tough job site conditions while remaining simple to operate.
In the Box
- PL-TT Receiver
- PL-VF3 Transmitter
- Direct connection Cord
- Ground Rod
- Protective Carrying Case
- User Manual
- (14)x Alkaline Batteries
