Description
Specifications
PL-VF10 Receiver
- Operating Frequencies: 512Hz to 480kHz
- Locating Modes: 8
- Display: Backlit segmented LCD
- Depth Measurement: 3 digit LCD readout of push-button measurement
- Dynamic Range: 126 dB
- Power Source: Rechargeable Li-Ion Battery
- Battery Life: Up to 40 hours
- Ingress Protection: IP65 (dustproof and water-resistant)
- Operating Temperature: -4F to +133F (-20C to +55C)
- Dimensions: 30.3″ 9.4″ (77 cm 24 cm)
- Weight: 4.2 lbs (1.9 kg)
PL-VF10 Transmitter
- Output Power: 10w
- Operating Frequencies: 512Hz to 480kHz
- Power Source: Li-Ion Battery
- Ingress Protection: IP65
- Operating Temperature: -4F to +133F (-20C to +55C)
- Dimensions: 16″ 6.32″ x 6″ (41 cm 16 cm x 15 cm)
- Weight: 6 lbs (2.7 kg)
Product Description
The PL-VF10 Pipe and Cable Locating System from SubSurface Instruments features a powerful 10-watt transmitter with automatic impedance matching perfect for locating pipes and cables up to 25 feet deep.
Operators can remotely adjust the transmitters output power and frequency from the handheld receiverup to 400 meters awayreducing downtime and walking back and forth. The system supports dual-frequency transmission and includes 8 standard locating modes and 8 customizable frequencies to suit different site conditions.
Visual guidance is delivered through a high-contrast, backlit LCD screen, which displays depth, current, signal strength, and directional arrows in real time. Audio signals with four volume levelsincluding muteoffer added flexibility for noisy environments.
The PL-VF10 system is available in two power configurations:
- With alkaline batteries: up to 82 hours of intermittent operation
- With rechargeable Li-Ion batteries: up to 40 hours of continuous use

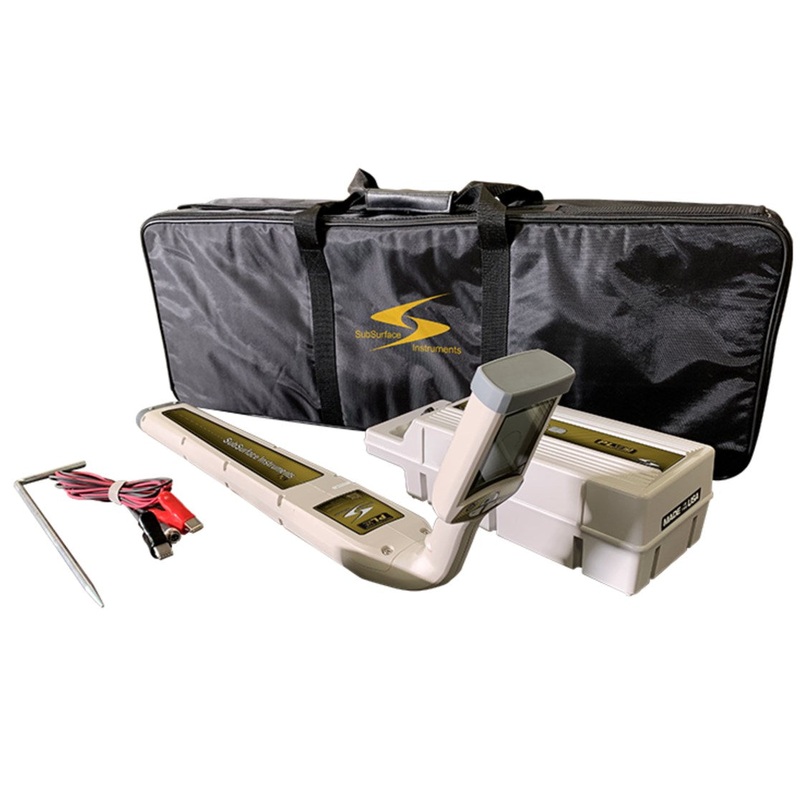

In the Box
- PL-VF Receiver
- PL-VF10 Transmitter
- Direct Connect Leads
- Ground Rod
- Protective Carrying Case
- Li-Ion Battery
- User Manual
Brochures and Manuals
- PL-VF10 Pipe and Cable Locator Product Datasheet
- PL-VF10 Pipe and Cable Locator Receiver Product Manual
