Description
Specifications
Amplifier:
- Amplification: 56 dB 3%
- Display: Large Analog Meter
- Headphones: Aviation-grade stereo headphones
- Power Supply: Four AA batteries
- Battery Life: 80 hours
- Weight: 31 oz.
- Dimensions: 6.4″ W 3″ H 5.7″ D
Sensor:
- Sensitivity: 10 V/g
- Resonance Frequency: 950 Hz 150 Hz
- Cable Length: 9.75 ft
- Waterproof Rating: IP68
Product Description
The SubSurface Instruments LD-15 is a professional-grade water leak detector designed for fast, accurate leak surveying at hydrants, valves, and meters. Equipped with a high-sensitivity sensor using a Neodymium magnet, the sensor is completely sealed and submersible (IP68 rated), capable of operating underwater up to 3 feet for 3 hours.
The LD-15s amplifier delivers 56 dB of audio amplification with superior clarity and minimal distortion. It features a large meter display and three filter settings: high-range (305000 Hz) for surveying, low-range (30800 Hz) for pinpointing through soil, and notch filters (150 Hz and 180 Hz) to reduce interference from power lines.
Designed for both survey and pinpoint operations, the LD-15 includes a magnet base for hydrants and valves, and a sensor base plate for locating leaks beneath asphalt or concrete. Optional accessories such as a long contact rod are available for meter inspections.
Powered by four C-cell batteries, the LD-15 delivers up to 80 hours of battery life and comes with stereo headphones, a padded carrying case, and waist strap for convenient field use.

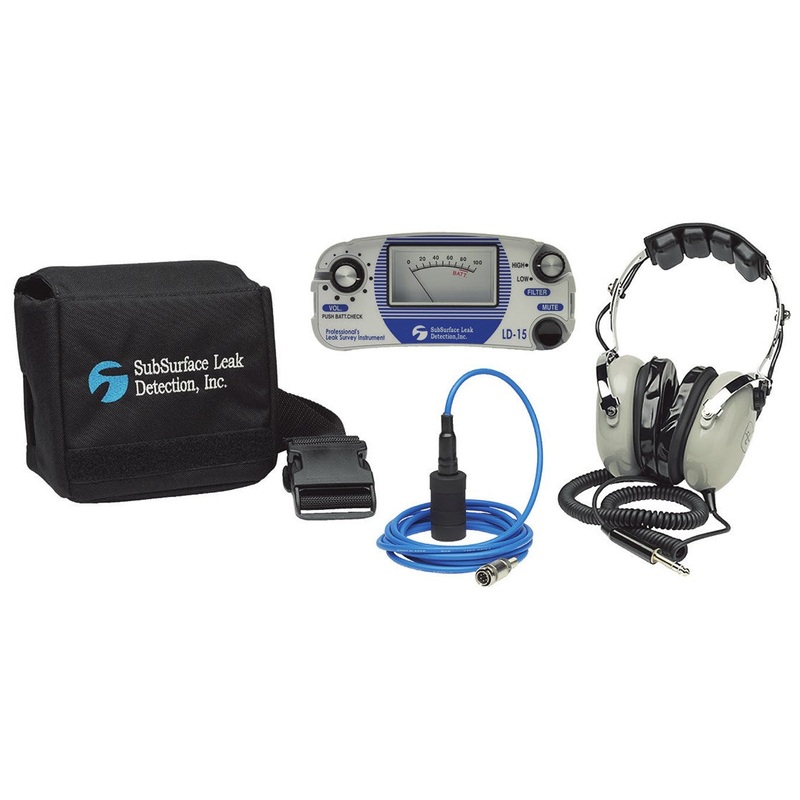

In the Box
- Amplifier w/meter display & filter controls
- Aviation-grade stereo headphones
- High sensitivity sensor & cable
- Padded case & waist strap
- Instruction Manual
Brochures and Manuals
- SubSurface LD-15 Water Leak Detector Product Datasheet
- SubSurface LD-15 Water Leak Detector Product Manual
