Description
Specifications
- Display: Dual LCD (front and back), sunlight-readable
- Grade Channels: 9
- Digital Readout Range: 70 mm
- Beam Capture Range: 45 horizontal / 90 mm vertical
- On-Grade Resolutions: 0.5 mm to 10 mm
- LED Indicators: Orange, Green, Red
- Mounting: Built-in magnet mount; Sensor Holder 100 compatible
- Audio Feedback: Loud / Low / Off
- Hold Button: Yes
- Alerts: HI Alert, Laser Battery Status
- Battery: 1 x AA alkaline
- Battery Life: Up to 45 hours
- Auto Shut-Off: After 30 minutes of inactivity
- Dust/Water Rating: IP67
- Operating Temperature: -4F to +122F (-20C to +50C)
Product Description

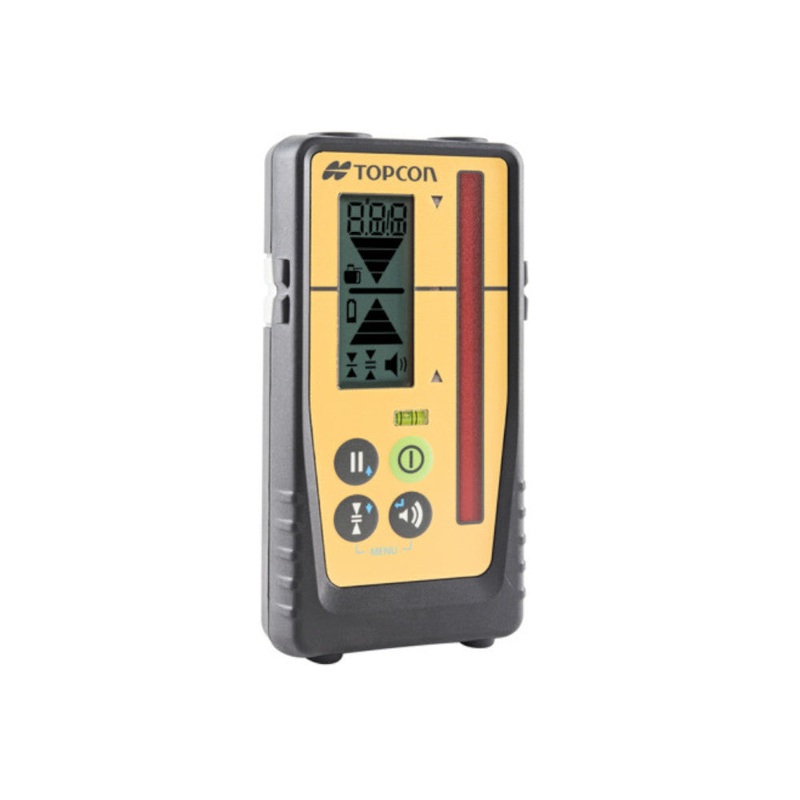

The Topcon LS-100D Laser Receiver is a feature-rich, jobsite-ready tool that delivers precise grade information for construction professionals. Equipped with front and rear sunlight-readable LCDs, it displays 9 channels of grade information along with a digital readout that shows the distance to on-grade. The extra-wide beam sensor includes strobe light suppression, ensuring accuracy even in high-interference environments.
For enhanced visibility and feedback, the receiver includes three-color LED indicators, audible tone control, and a Hold function to lock measurements for easier reading. A built-in magnet mount allows quick vertical placement on steel surfaces, making it ideal for tasks like excavation and steel erection. With up to 45 hours of battery life on a single AA battery, IP67-rated durability, and alerts for height disturbance and laser low battery, the LS-100D is built to handle tough conditions while keeping you productive and accurate.
Brochures and Manuals
- Topcon LS-100D Digital Laser Receiver Manual
