Description
Specifications
- Working Diameter: Up to 1,500 Feet
- Detection Precision: High: 1.0 mm, Normal: 2.0 mm
- Detection Range: 50 mm
- Display: Dual LCD (front and back)
- Grade Indicators: 9
- Precision Levels: 5
- Volume Settings: Loud / Low / Off
- Alerts: Height alert, laser battery status
- Battery Type: 2 x AA alkaline or dry cell
- Battery Life: Up to 120 hours
- Auto Shut-Off: 30 minutes
- Dust/Water Protection: IP66
- Operating Temperature: -4F to +122F (-20C to +50C)
Product Description

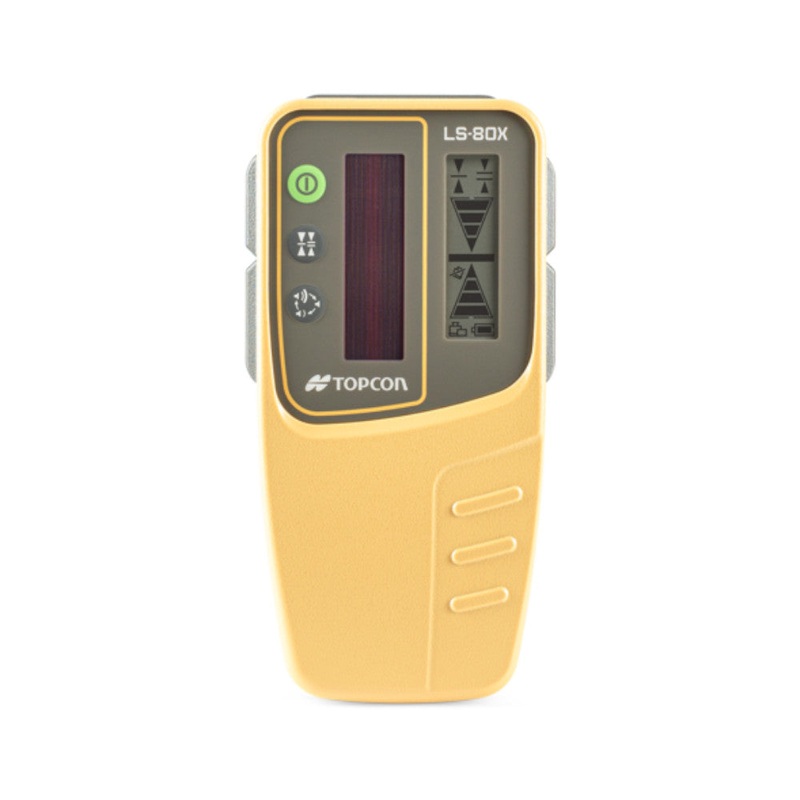

The Topcon LS-80X Handheld Laser Receiver offers reliable, easy-to-use grade information for one-person operation across a range of construction tasksfrom sub-base leveling to concrete finishing. Designed for use with most conventional rotating lasers, the LS-80X provides clear two-way communication, height alert, and laser battery status directly at the leveling rod.
It features dual LCD displays, 5 selectable precision levels, and a long-lasting 120-hour battery life powered by two AA batteries. With a working range up to 800 meters (2,600 feet) and an IP66-rated housing, the LS-80X is built to withstand dust, water, and tough field conditionsmaking it a jobsite essential for accurate and efficient laser-based leveling.
Brochures and Manuals
- Topcon LS-80 series Handheld Laser Receiver Manual
