Description
Specifications
Laser:
- Laser diode: 635 nm visible beam
- Laser class: Class 2
- Accuracy: 1.5mm at 30m (1/16 inch at 100 feet)
- Working range: 800m (2,620 feet) diameter with LS-80L sensor
- Self-leveling range: 5 degrees
- Grade range: -5% to +25%
- Slope matching: 5 degrees
- Operating time: approx. 65 hours with alkaline batteries
- Dust and water protection: IP66 rating
- Weight: 2.4 kg (5.3 lbs) with batteries
- Dimensions: 182 x 243 x 212 mm (7.2 x 9.6 x 8.4 inches)
LS-80L Sensor:
- Reception height: 127mm (5 inches)
- Detection height: 84mm (3.3 inches)
- Working range: 800m (2,620 feet) diameter
- Display: front and rear LCD displays
- Power source: 2 x AA alkaline batteries
Product Description

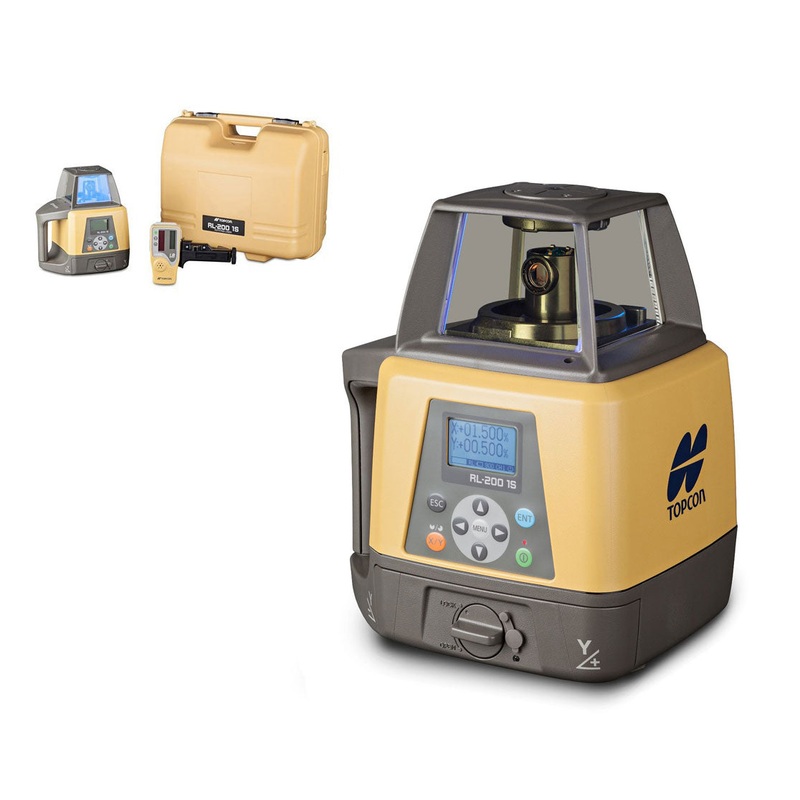

The Topcon RL-200 1S is a professional-grade, single slope laser level used in construction and surveying applications. It offers highly accurate and precise leveling, aligning, and grading functions, making it ideal for a wide range of construction projects.
The RL-200 1S features a long-range laser diode that can project a highly visible beam up to 800 meters (2,620 feet) in diameter, making it suitable for large-scale projects. It also has an automatic self-leveling feature that ensures the laser beam is always level, even when the device is placed on uneven ground.
Other features of the Topcon RL-200 1S include a slope matching function that allows for precise grading on single slopes, a high-speed rotating head that can complete a full 360-degree rotation in just five seconds, and a remote control for easy operation at a distance.
Overall, the Topcon RL-200 1S is a powerful and reliable tool for construction professionals who need accurate and efficient leveling and grading capabilities.
In the Box
- RL-200 1S High Accuracy Slope Laser
- LS-80L Receiver
- Receiver Bracket
- Alkaline Battery
- Hard Shell Carrying Case
Brochures and Manuals
- RL-200 1S Slope Laser Manual
