Description
Specifications
- Laser diode: 635 nm visible beam
- Laser class: Class 2
- Accuracy: 1.5mm at 30m (1/16 inch at 100 feet)
- Working range: 800m (2,620 feet) diameter with LS-80L sensor
- Self-leveling range: 5 degrees
- Grade range: -5% to +25%
- Slope matching: 5 degrees
- Operating time: approx. 100 hours
- Dust and water protection: IP66 rating
- Weight: 2.4 kg (5.3 lbs) with batteries
- Dimensions: 182 x 243 x 212 mm (7.2 x 9.6 x 8.4 inches)

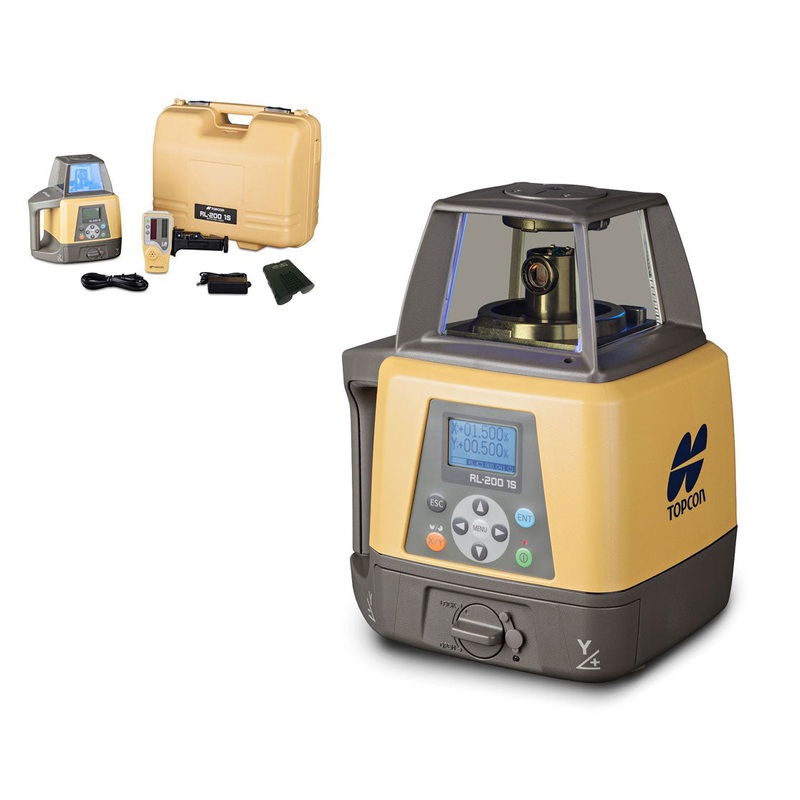

Product Description
Topcon’s RL-200 1S is a professional-grade single slope laser level that exceeds in long range and steep grade applications. It offers highly accurate and precise leveling, aligning, and grading functions, making it ideal for a wide range of construction projects. The RL-200 1S features a long-range laser diode that can project a beam 3,600 in diameter and can handle grades up to 25%. If you are looking for a reliable grade laser for a large scale project, the RL-200 1S is an excellent solution for you.
In the Box
- (1) Topcon RL-200 1S Single Grade Laser
- (1) LS80X Receiver
- (1) Sensor 8 Holder Bracket
- (1) Rechargeable Battery Pack
- (1) Hard carrying case
- (1) User manual
Brochures and Manuals
- RL-200 1S Slope Laser Manual
