Description

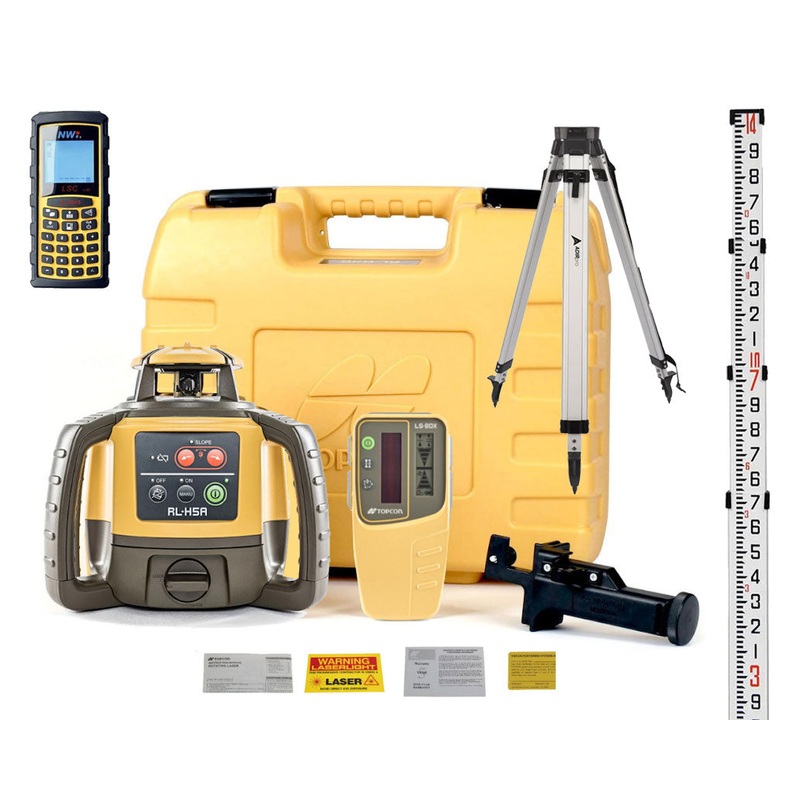

This Topcon rotary lasers package includes the Topcon RL-H5A Rotary Laser, the LS-80X Receiver, a heavy duty tripod, a grade rod in the units of your choice, and a laser distance meter. This complete package provides you with all the essential tools you need on a jobsite with the added convenience of having them all included in one package.
Specs
- Self-leveling range: 5 degrees
- Accuracy: 1/16 inch at 100 feet (1.5 mm at 30 meters)
- Working range (diameter): Up to 2,600 feet (800 meters) with detector
- Rotation speed: 600 RPM
- Battery life: Approximately 100 hours (alkaline batteries)
- Operating temperature range: -4F to 122F (-20C to 50C)
- Water and dust protection: IP66 rating
- Dimensions: 7.7″ x 8.3″ x 6.9″ (195 x 210 x 175 mm)
- Weight: 5.5 lbs (2.5 kg)
- Laser diode: 635nm (visible)
- Laser class: 3R
In The Box
- (1) Topcon RL-H5A Horizontal Self-Leveling Rotary Laser
- (1) Topcon LS-80X Laser Receiver
- (1) Sensor Holder 6 Receiver Mounting Bracket
- (1) NWI Laser Distance Meter
- (1) Aluminum Tripod
- (1) Grade Rod
- (1) Hard Carrying Case For The H5A, LS-80X, and Receiver Bracket
- (1) User Manual
