Description
Specifications
- Self-leveling range: 5 degrees
- Accuracy: 1/16 inch at 100 feet (1.5 mm at 30 meters)
- Working range (diameter): Up to 2,600 feet (800 meters) with detector
- Grading: 5% Manual Slope
- Rotation speed: 600 RPM
- Battery life: Approximately 100 hours (alkaline batteries)
- Operating temperature range: -4F to 122F (-20C to 50C)
- Water and dust protection: IP66 rating
- Dimensions: 7.7″ x 8.3″ x 6.9″ (195 x 210 x 175 mm)
- Weight: 5.5 lbs (2.5 kg)
- Laser diode: 635nm (visible)
- Laser class: 3R
Product Description
The Topcon rl-H5A is a top-of-the-line rotary laser, designed to level construction sites with precision and ease. It is an ideal tool for professionals in the excavation, concrete, landscaping, and other general construction industries. The H5A touts an impressive range, emitting a laser beam up to 2,600 feet with an exceptional accuracy of 1/16 inch at 100 feet. The H5A is equipped with the industry standard self-leveling capabilities that can adjust within a range of 5 degrees. In addition, it has manual slope built in allowing a user to manually grade up to 5%.

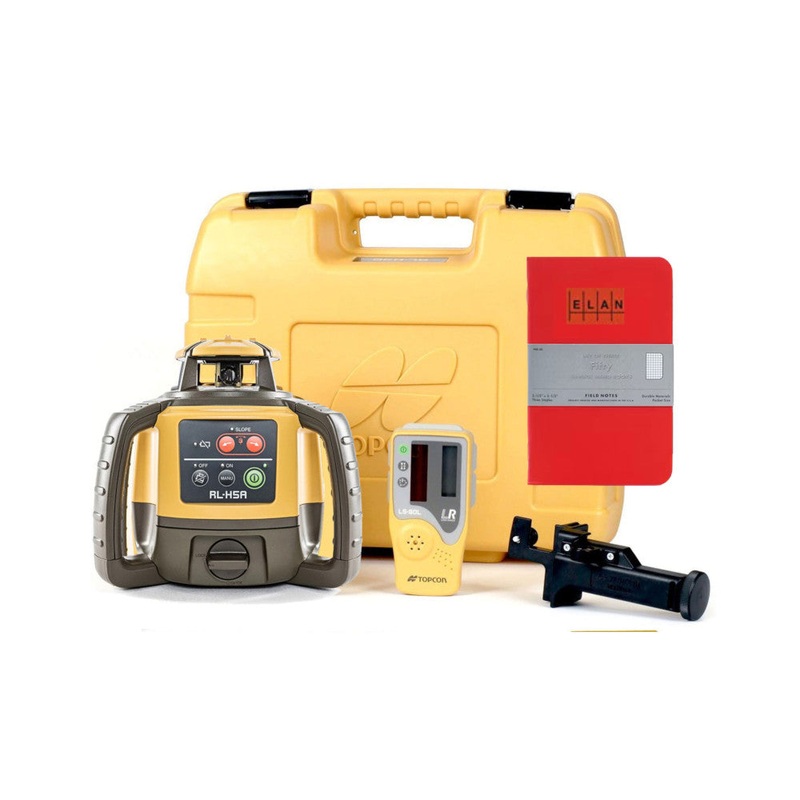

This Topcon rl-H5A package includes the rl-H5A rotary laser, an LS-80X, the receiver bracket to mount the LS-80 receiver to a grade rod, field book and a hard carrying case.
In The Box
- (1) Topcon RL-H5A Horizontal Self-Leveling Rotary Laser (Alkaline battery)
- (1) Topcon LS-80X Laser Receiver
- (1) Sensor Holder 6 Receiver Mounting Bracket
- (1) Hard Carrying Case
- (1)Field Book
- (1) User Manual
**Alkaline Batteries in the package (1021200-50) not included due to shipping reasons.
Brochures and Manuals
- Topcon RL-H5A Rotary Laser Brochure
