Description
Specifications
- Grade range: 5% (15% on manual mode)
- Slope matching: 5 degrees
- Slopes: Single Grade
- Operating time: approx. 60 hours with alkaline batteries
- Dust and water protection: IP66 rating
- Weight: 2.7 kg (5.9 lbs) with batteries
- Dimensions: 246 x 196 x 172 mm (9.7 x 7.7 x 6.8 inches)
Product Description

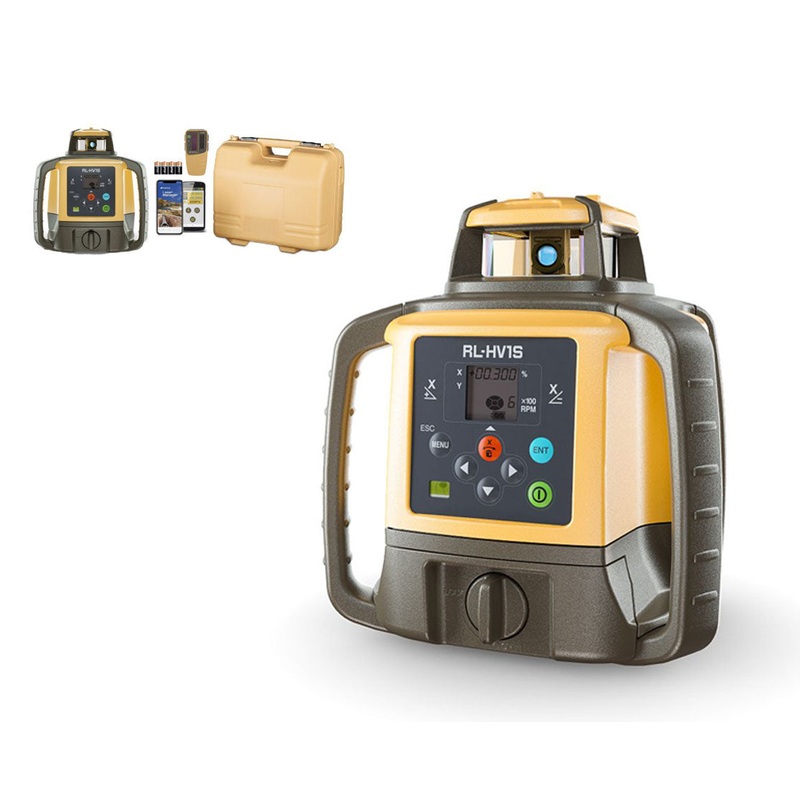

The Topcon RL-HV1S is a professional grade laser designed for use in construction, grading, excavating, and other high-precision applications. The RL-HV1S offers a range of advanced features, 5% slope on the x, 1/16 inch at 100 feet accuracy, and compatibility with various remote control options via the Bluetooth app. The laser is rugged and reliable as it’s waterproof and dustproof design can withstand harsh work environments. This package includes the upgraded receiver, the LS-100D which provides digital readouts, and the rechargeable battery tray. Overall, the RL-HV1S is designed to provide accurate, efficient, and reliable laser leveling for professionals in a range of industries.
NOTE: The Topcon HV1s replaces the SV1s series. The remote is no longer included in the package. The laser is now controlled through an app on your smartphone (laser manager).
In The Box
- (1)Topcon HV1s Dual Grade Laser
- (1) LS-100D Laser Receiver
- (1) Sensor Holder 6 Receiver Mounting Bracket
- (1) Rechargeable Battery Pack/Tray
- (1) Topcon Laser Manager App (Download from app store)
- (1) Hard Carrying Case
- (1) User Manual
Brochures and Manuals
- Topcon RL-HV1S Single Grade Laser Brochure
