Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS:119-1981, 119 1981, 119981

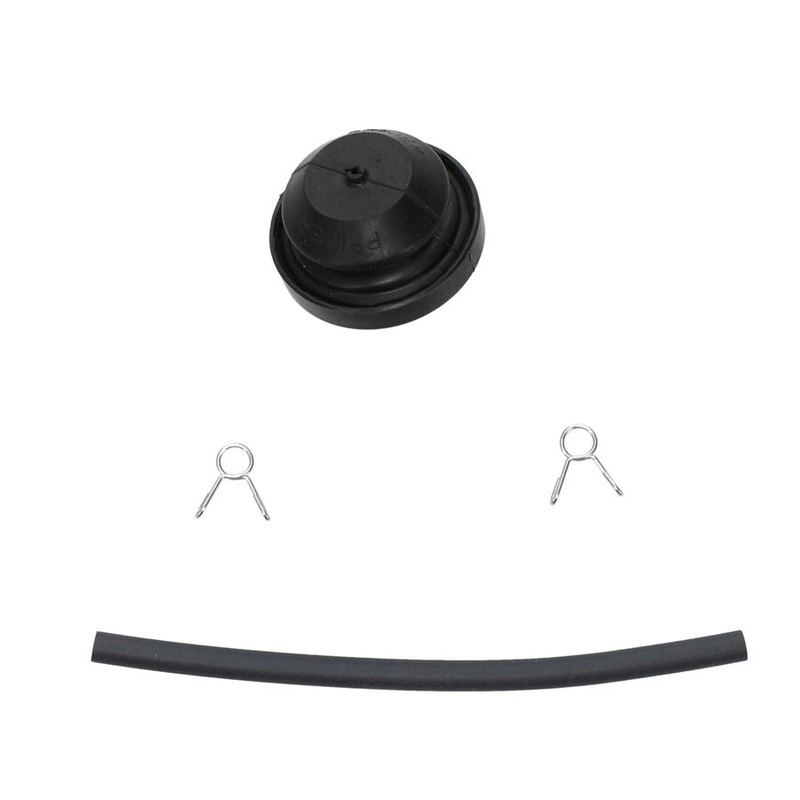

- PRODUCT TYPE:Primer Bulb & Fuel Line Kit – Comes with Primer Bulb Assembly, Primer Bulb Fuel Line & Fuel Line Clamp
- SIZE:Weight 0.050 lbs.
- NOTES & DETAILS:Toro OEM 119-1981 IS COMMINLY USED – 119-1981 Both Fuel Line and Primer Bulb Assembly is Commonly Used to Connect and Allow Fuel to Be Siphoned into the Carburetor Intake. 119-1981 Fuel Line Kit Enable Fuel to be Delivered to the Intake of the Carburetor Via the Primer Bulb Operation Allowing for a Faster Starting Procedure. 119-1981 Primer Bulb Fuel Line Kit Comes with all the Necessary Primer Bulb, Primer Bulb Line and Primer Bulb Line Clamp – For Additional Associated Parts Refer to the Associated Part Chart Below.
- COMMON SERIES APPLICATIONS: Toro Select 18″ 400 & 500 Series Power Clear & Powerlite Snow Blower Models
- MODEL FIT CHART:
SNOWBLOWERS
POWER LITE Series Model Numbers (* Model Numbers 38273, 38274,38283)
POWER CLEAR Series Model Numbers (* Model Numbers 38272Serial Number 311000001 and Higher, 38282Serial Number 311000001 and Higher, 38472, 38473, 38474, 38475)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-1981 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
COMPLETE CARBURETOR ASSEMBLY
- 119-1980–Powerlite(Only Model 38273 & 38283)& Select Power Clear 400 Series(* Model Numbers 38272–Serial Number 311000001 and Higher, 38282-Serial Number 311000001 and Higher)
- 136-7931–Powerlite(Only Model 38274), Power Clear 500 Series(Only Select Models –Review Models Fit Chart Associated to Each Part Numbers)
ASOCCIATED MAIN FUEL LINE & PRIMER BULB/FUEL LINE KITS
- 119-1981– PRIMER BULB KIT(Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine – Enabling a Faster Engine Startup)x1 Per Carburetor*Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit(* Excluding Model Numbers 38272WithSerial Number 310999999 and Lower, 38282WithSerial Number 310999999 and Lower)
- 119-1930– PRIMER BULB KIT(Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine – Enabling a Faster Engine Startup)x1 Per Carburetor*Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit(* Only Model Numbers 38272WithSerial Number 310999999 and Lower,38282WithSerial Number 310999999 and Lower)
- 136-7773– FUEL LINE & FILTER KIT(Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl – Fuel Line Only Connects to the Lower End of the Tank Fuel Filter and from there Connect to the Carburetor – Fuel Filter Screws into the Bottom of the Fuel Tank)x1 Per Carburetor*Fuel Line Hose, Tank Fuel Filter, Hose Clamps are Include in the Kit – Powerlite(Only Model 38274)&Power Clear 500 Series(Select Models -Review Models Fit Chart Associated to Each Part Numbers)
- 121-0487– FUEL LINE & FILTER KIT(Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl – Fuel Line is supposed to Connect to Both Sides of the Inline Fuel Filter and from there Connect to the Carburetor and Fuel Tank)x1 Per Carburetor *Fuel Line Hose, Inline Fuel Filter, Hose Clamps Include in the Kit – Powerlite(Only Model 38273 & 38283)& Select Power Clear 400 Series(Model Numbers 38272 – Only Serial Number 311000001 and Higher, 38282 – Only Serial Number 311000001 and Higher).
