Toro OEM 120-9698 Carriage Bolt Fits Toro Select Recycler Walk behind Models – Select Power Clear, Powerlite, Power Max Models – Flex, E-Flex Flex-Force Models (1/4 x 1.75 – 20).

Description

Please refer to the Images above, Model Fit Chart and Product Specifications below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS:120-9698, 120 9698, 1209698
• PRODUCT TYPE:Carriage Bolt
• SIZE:Common Thread Type1/4 x 1 3/4 – 20
• NOTES & DETAILS:Toro OEM 120-9698 CONTAINS A WIDE RANGE OF USAGES –

1. (Power Clear & Powerlite Models) –Most Commonly Used to Retain the Bottom Handle Section to the Main Snowblower Auger Housing and Inserted from Inside the Auger Housing as well as Inserting into a Square Washer That Inserts into the Auger/Rotor Housing.

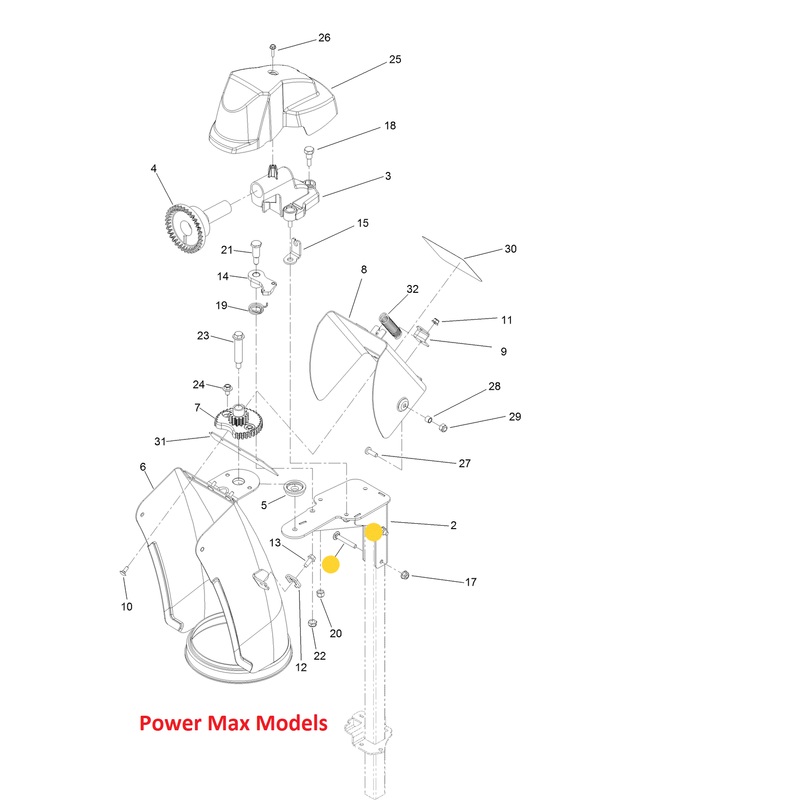

2. (Power Max Models) – Used to retain the upper Chute Assembly Bracket to the Chute Rod the come off the Main Frame.
3. (Flex, Flex Force, E Flex Series) – Use to fasten the two Clamp Handles Together.
4. (Recycler Walk behind Models) – Used to Retain the Cable Anchor on the Bottom Side of the Mower Deck

• COMMON SERIES APPLICATIONS:Toro Flex, Flex-Force & E FLEX Models–Toro Powerlite, Power Clear, Power Max Snow Blower Models–Toro Recycler Walkbehind Mower Models.

• MODEL FIT CHART:

04040, 04041, 04042, 04043, 04044, 04045, 04046, 04049, 04053, 21463, 21764, 21772, 31853, 31853T, 31875, 37798, 37799, 37802, 37805, 37807, 38274, 38474, 38475, 38812, 38814, 38819, 38838, 39901, 39901T, 39924, 39925, 39926, 39926T
