Description
Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
- PRODUCT NUMBER AND VARIATIONS:121-0711, 121 0711, 1210711

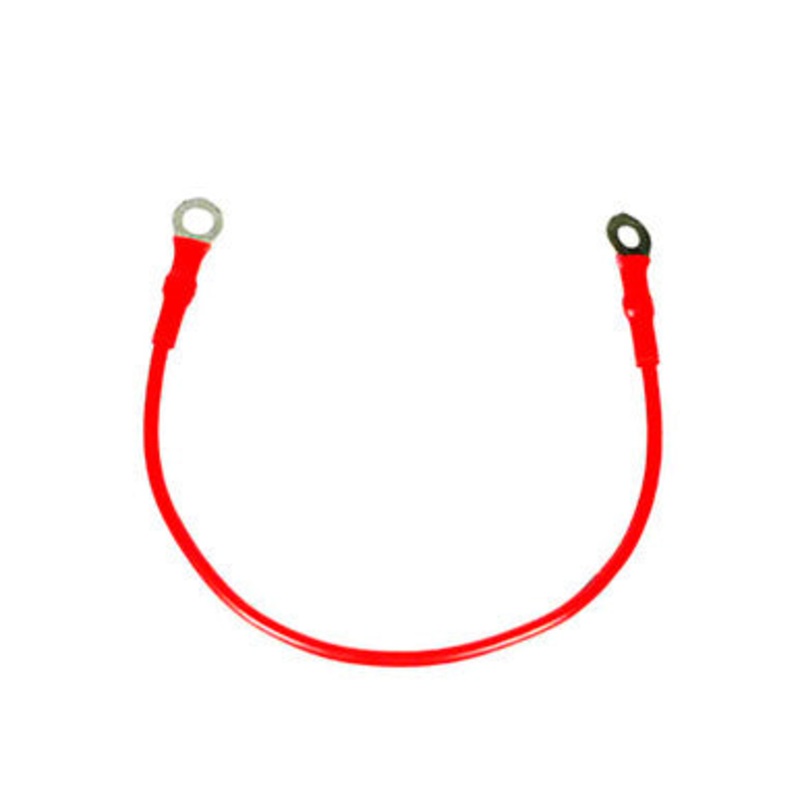

- PRODUCT TYPE:TORO OEM RED/POSITIVE BATTERY CABLE
- NOTES & DETAILS:Toro OEM 121-0711 Red Positive Battery Cable is Primarily Used Between the Electrical Solenoid and the Engine’s Starter Assembly. 121 0711 Main Purpose is Service by Transferring Electrical Current from the Solenoid to the Engine’s Electric Starter under the Direction and Functions of the Ignition Switch and Electric Solenoid. 121 0711 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
- SIZE: 14 in.
- COMMON SERIES APPLICATIONS: Toro All Current Timecutter MAX Models–Select Late Timecutter Models (Review the Model Fit Chart for More Details) – All Current Titan and Titan MAX Models (ModelsWith I-Beam Framing)
- ASSOCIATED FASTNER PARTS CHART:
STARTER ASSEMBLY
- 139-2575– FLANGE NUT(Retains Battery Cable End or Eyelet to the Engine Starter Assembly) x1 Per Engine Starter Assembly
SOLENOID
- 117-1197– SOLENOID(Retains the One End of the Battery Wire and Transfers Battery Current with the Different Functions of the Ignition Switch and Individual Safety Switch Circuits)x1 Per Unit
- 139-2580– NUT(Retains Solenoid Cable End or Eyelet to the Solenoid Post) x1 Per Solenoid Post
- MODEL FIT CHART:
TIMECUTTER
TIMECUTTER 32 SS Series Model Numbers 74621, 74629, 74710
TIMECUTTER 32 SW Series Model Numbers74670, 74780, 74781
TIMECUTTER 32 ZS Series Model Numbers 74388, 74650, 74682
TIMECUTTER 34 MX Series Model Numbers74750
TIMECUTTER 42 SS Series Model Numbers 74627, 74628, 74633, 74616, 74636, 74705, 74711, 74720, 74721, 74723, 74725, 74726
TIMECUTTER 42 SW Series Model Numbers74675, 74676, 74784, 74785, 74788
TIMECUTTER 42 SWX Series Model Numbers74787
TIMECUTTER 42 ZS Series Model Numbers 74655, 74657, 74665, 74667, 74684, 74686
TIMECUTTER 42 MX Series Model Numbers 74642, 74760, 74765, 74766
TIMECUTTER MAX 42 (STANDARD) Series Model Numbers 77402
TIMECUTTER MAX 42 (My-Ride) Series Model Numbers77403
TIMECUTTER 50 ZS Series Model Numbers 74661, 74688
TIMECUTTER 50 MX Series Model Numbers 74770, 74771, 74775, 74778, 74768, 74773, 74774
TIMECUTTER 50 SS Series Model Numbers 74637, 74731, 74732
TIMECUTTER 50 SW Series Model Numbers74793, 74680, 74790
TIMECUTTER 50 SWX Series Model Numbers74797, 74798, 74795
TIMECUTTER MAX 50 (STANDARD) Series Model Numbers77501, 77505
TIMECUTTER MAX50 (My-Ride) Series Model Numbers77502
TIMECUTTER 54 SS Series Model Numbers74740, 74741
TIMECUTTER MAX 54 (STANDARD) Series Model Numbers77504, 77506
TIMECUTTER MAX54 (My-Ride) Series Model Numbers77503, 77507
TIMECUTTER 60 MX Series Model Numbers74777
TIMECUTTER MAX 60 (STANDARD) Series Model Numbers77601
TIMECUTTER MAX60 (My-Ride) Series Model Numbers77602, 77603
TITAN
48 TITAN Standard, My-Ride(48 Newer/Current Models I-Beam Frame) 48 Current Models –(* Model Numbers 76401, 76411, 76420, 76425, 76448)
54 TITAN Standard, My-Ride(54 Newer/Current Models I-Beam Frame) 54 Late/CurrentModelsOnly –(* Model Numbers 76501, 76511, 76530, 76554)
60 TITAN, TITAN My-Ride, Titan ZXM 6075(60 Newer/Current Models I-Beam Frame) 60 Current Models – (* Model Numbers 76604, 76605, 76614, 76635, 76660)
60 TITAN MAX(60 Newer/Current Models I-Beam Frame) 60 Current Models – (* Model Numbers 76606, 76607, 76608, 76609, 76610)
