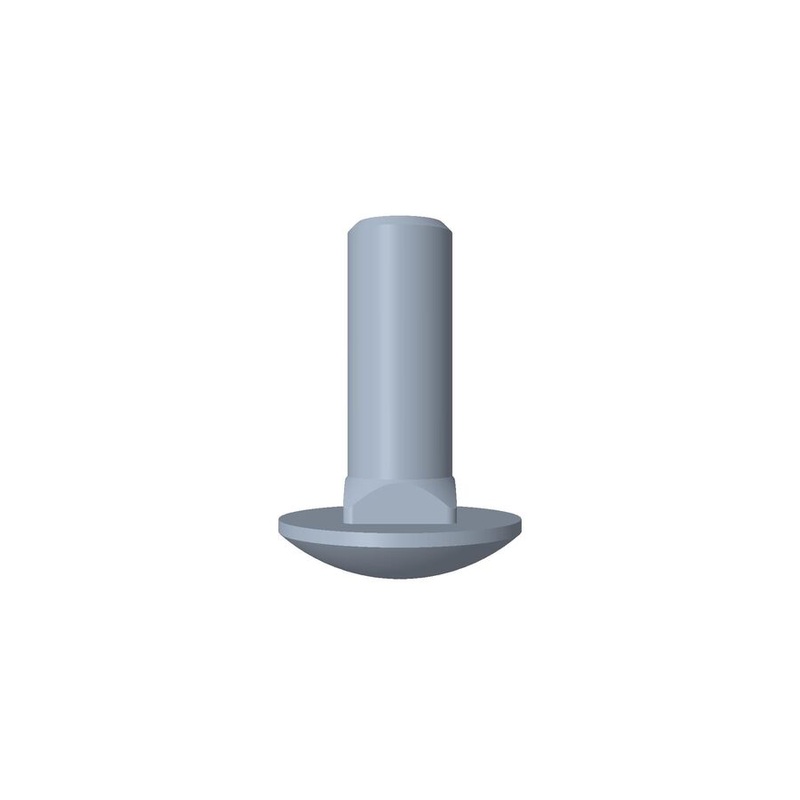

Toro OEM 137-3058 Carriage Bolt Fits Select 18 Single Stage Power Clear and Power Lite – 26 Snow Max Snowblower Models (5/16 x 7/8 – 18).

Description

Please refer to the Images above and Product Specifications below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS:137-3058, 137 3058, 1373058
• PRODUCT TYPE:Carriage Bolt
• SIZE:Common Standard Thread Type5/16 x 7/8 – 18
• NOTES & DETAILS:TORO OEM 137-3058 IS COMMINLY USED –

1. Power Clear & Power Lite Models – To Retains the Auger/Propeller Idler Pulley Tensioner Arm to the Main Snowblower Frame – Installed with the Head of the Bolt on the Inside of the Auger Housing.
2. Snow Max Models – Retains the Drive/Traction Idler Pulley Tensioner Arm to the Main Snowblower Frame – Installed with the Head of the Bolt on the Inside of the Snowblower Housing Traveling Through the Drive/Traction Idler Arm.

• COMMON SERIES APPLICATIONS: Toro Select 18″ Power Clear & Powerlite – 26″ Snow Max Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWERS

Auger Idler Pulley Tensioner Arm

POWER LITE Series Model Numbers(* Model Numbers 38274)

POWER CLEAR Series Model Numbers(* Model Numbers 38474, 38475)

Drive/ Traction Idler Pulley Tensioner Arm

SNOW MAX & E SNOW MAX Series Model Numbers(* Model Numbers 31875, 38812, 38814, 38815, 38819)
