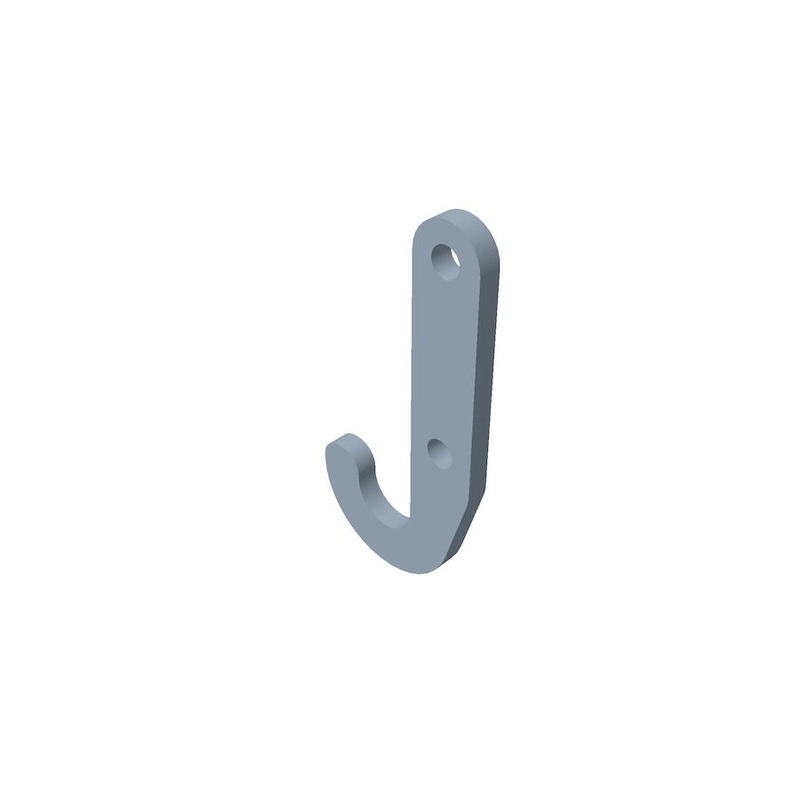

Toro OEM 138-7233 Retaining Lift Bracket Fits Toro Timecutter 32 SS, SW, ZS – 34 MX – 42 MX, SS, SW, SWX, Z, ZS – 50 MX, SS, SW, SWX, Z, ZS – 54 SS, SW Models.

Description

Toro OEM 138 7233 Retaining Lift Bracket Is Designed to Serve the Purpose of Retaining the Mower Deck Lift/Leverage Arm to the Frame as well as Allowing it to Pivot. Toro 138 7233 Is Designed for Late/EarlySelect Toro 32″ (SW, SS, ZS), 34″ (MX), 42″ (SW, SWX, SS, ZS, MX), 50″ (MX, SS, SW, SWX, Z, ZS), 54″ (SS, SW)Timecutter Models.Due to Variation Within Model Numbers/Series,for an Accurate Break down of Usage Refer to the Model Fit Chart.Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.Part Numbers 119-8875 Supersede to Part Number 138-7233.

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7233 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 32144-70– WASHER HEAD BOLT –(Retains Mower Deck Lift/Leverage Arm Retaining Lift Brackets)x2 Per Bracket
2. 132-6872-03– MOWER DECK LIFT LEVARAGE ARM –(Fits select 32″, 34″, 42″ Timecutter Models –Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage- Review Part Number Model Fit Chart to Ensure Correct Fit)x1 Per Unit
3. 132-6878-03– MOWER DECK LIFT LEVARAGE ARM –(Fits select 50″, 54″ Timecutter Models – Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage- Review Part Number Model Fit Chart to Ensure Correct Fit)x1 Per Unit

Specification

Product Number:

1198875, 1387233

Brand:

Toro

Length:

4.375 IN (11.113 CM)

Width:

2.125 IN (5.398 CM)

Height:

0.250 IN (0.635 CM)

Weight:

0.261 LB (0.118 KG)

Model Fit:

TIMECUTTER 32 ZS Series Model Numbers74682, 74385, 74388, 74650

TIMECUTTER 32 SS Series Model Numbers74620, 74621, 74629, 74710

TIMECUTTER 32 SW Series Model Numbers74670, 74780, 74781

TIMECUTTER 34 MX Series Model Numbers74750

TIMECUTTER 42 MX Series Model Numbers74640, 74642, 74649, 74760, 74765, 74766

TIMECUTTER 42 ZS Series Model Numbers 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686

TIMECUTTER 42 SS Series Model Numbers74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726

TIMECUTTER 42 SW Series Model Numbers74675, 74676, 74784, 74785, 74788

TIMECUTTER 42 SWX Series Model Numbers74787

TIMECUTTER 50 MX Series Model Numbers 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776

TIMECUTTER 50 ZS Series Model Numbers 74688, 74660, 74661, 74395, 74387

TIMECUTTER 50 SS Series Model Numbers 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732

TIMECUTTER 50 SW Series Model Numbers 74680, 74790

TIMECUTTER 50 SWX Series Model Numbers 74797, 74798, 74795

TIMECUTTER 54 SS Series Model Numbers 74740, 74741

TIMECUTTER 54 SW Series Model Numbers 74793
