Description

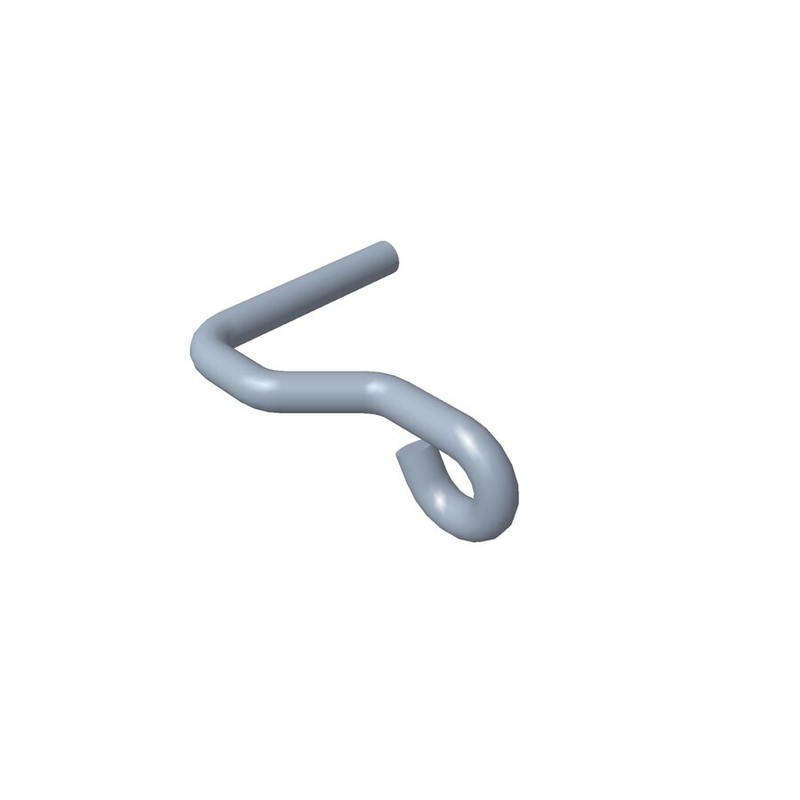

Toro OEM 138 7270 Heavy-Duty Mower Deck Belt Guard is used on a Variation of Models within Different Timecutter Series this is contributed to Engineering Specifications on Engine Torque as well as Mower Deck Idler Spacing and a Few other Contributing Factors. Toro 138 7270 Mower Deck Belt Guard is the Exclusive/Standard Belt Guard for Timecutter Models and Serves the Purpose of Retaining the Mower Deck Belt closer to the Pulley on the Tensioner Idler Pulley. The Tensioner arm is Designed to Allow Forgiveness in Differentials of Torque and Load Contributing to Movement of Tensioner Pulley Which Could Causes Mower Deck Belt Slapping. Toro OEM 138-7270 is Designed to Maintain the Mower Deck Belt Close to the Mower Deck Tensioner Idler Pulley when Mower Deck Slapping or a Differential of Load and Torque is Applied this Eliminates the Mower Deck Belt from Slipping off the Tensioner Pulley. Toro 138-7270 Fits Toro Select 32″ Timecutter ZS, SS, SW Models – Select 34″ MX Models – Select 38″ Timecutter Z Models –Select 42″ Timecutter MAX, Z, ZS, SS, SW, 4200, Standard Models–Select 50″ Timecutter MAX, MX, 5000, Standard, My-Ride Models– Select 54″ Timecutter MAX, Standard, My-Ride Models – and More….Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage. *Part Number 107-7307 & 88-5070 Supersede to Part Number 138-7270
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-7270 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 323-11– HEX HEAD BOLT(Retains Belt Guard, Idler Pulley & Spacer Washer to the Mower Deck Idler Arm – Installed from the Bottom Side of the Idler Pulley)x1 Per Mower Deck Idler Arm
- 138-7262– MOWER DECK IDLER PULLEY(Mower Deck Belt Guard, Idler Pulley & Spacer Washer are Fastened to It – All of which use the same Fastners and Retaining Hole)x1 Per Mower Deck
- 132-9420 – IDLER PULLEY(Mower Deck Belt Guard Fastens over top of the Idler Pulley using the same Hardware and Retains the Mowe Deck Belt Between the Belt Guard and Pulley) x? Quantity Varies Upon Mower Deck Size
- 138-7207 – BLOWER HUB/SPACER WASHER (Spaces the Mower Deck Belt Guard Away from the Mower Deck Tensioner Idler Pulley – Contains the Correct Radius of Tightening to Ensure the Bearing can Still Spin Freely)x1 Per Mower Deck Tensioner Idler Pulley
- 104-8301– FLANGE NUT (Retains Belt Guard, Idler Pulley & Spacer Washer to the Mower Deck Idler Arm – Installed from the Bottom Side of the Idler Pulley)x1 Per Mower Deck Tensioner Idler Pulley
Specification
Product Number:
1327270, 1077307, 885070
Brand:
Toro
Length:
3.000 IN (7.620 CM)
Width:
2.250 IN (5.715 CM)
Height:
1.000 IN (2.540 CM)
Weight:
0.134 LB (0.061 KG)
Model Fit:
TIMECUTTER
TIMECUTTER 32 ZS Series Model Numbers 74385, 74388, 74650, 74682
TIMECUTTER 32 SS Series Model Numbers74620, 74621, 74629, 74710
TIMECUTTER 32 SW Series Model Numbers74670, 74780, 74781
TIMECUTTER 34 MX Series Model Numbers74750
TIMECUTTER 38 Z Series Model Numbers74301, 74402, 74419
TIMECUTTER 42 SS Series Model Numbers 74705, 74706, 74711, 74726
TIMECUTTER 42 SW Series Model Numbers 74676, 74788
TIMECUTTER 42 Z Series Model Numbers74325, 74327, 74330, 74350, 74403, 74420, 74425
TIMECUTTER 42 ZS Series Model Numbers 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687
TIMECUTTER 42 4200 & ZR 4200 Series Model Numbers 75740
TIMECUTTER 42 (STANDARD) Series Model Numbers75741, 75742, 75748, 75749, 77401
TIMECUTTER 44 Z Series Model Numbers74351
TIMECUTTER 50 MX Series Model Numbers 74694, 74695
TIMECUTTER 50 5000 Series Model Numbers75751
TIMECUTTER 50 (STANDARD) Series Model Numbers75750, 75753
TIMECUTTER 50 (My-Ride) Series Model Numbers74696, 75755, 75759
TIMECUTTER MAX 50 (STANDARD) Series Model Numbers77501, 77505
TIMECUTTER MAX50 (My-Ride) Series Model Numbers77502
TIMECUTTER 54 (My-Ride) Series Model Numbers75754, 75756, 75757
TIMECUTTER MAX 54 (STANDARD) Series Model Numbers77504, 77506
TIMECUTTER MAX54 (My-Ride) Series Model Numbers77503, 77507
LT, SD, V, HXL, XL, XLS, and Other Older Model Riding Tractors and Zero Turns Series (MOWER DECK) Model Numbers 71180, 71181, 71184, 71185, 71190, 71191, 71193, 71198, 71202, 71203, 71205, 71208, 71212, 71213, 71215, 71217, 71219, 71220, 71221, 71223, 71225, 71226, 71227, 71228, 71240, 71241, 71242, 71243, 71245, 71246, 71252, 71254, 71255, 71427, 71428, 77102, 77104, 77106, 79105, 79105, 79107, 79108, 79109, 81180, 81181, 81182, 81191,
MZ Riding Tractor Series Model Numbers 94301, 94327, 94330, 94351, 725057006, 725057016, 725057026, 725058026
Mower Deck Service Kits Part Numbers 132-9330, 132-9331, 132-9332
