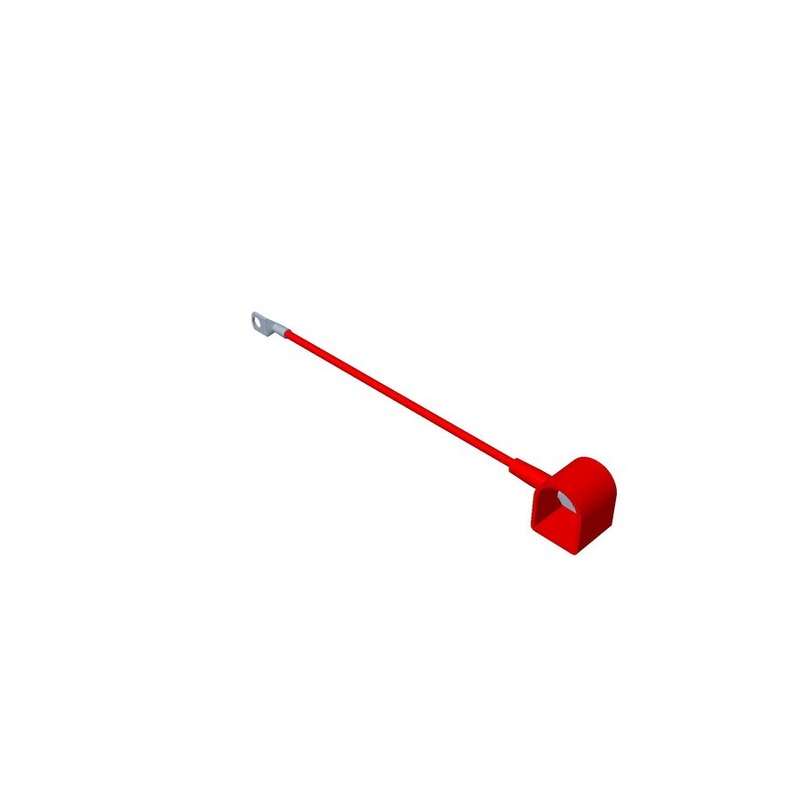

Toro OEM 140-2713 Red/Positive Battery Cable (8 Gauge Wire – 5/16 Eyelet/Bolt Whole – 1/4 Eyelet/Bolt Whole – Battery Post Cover) Fits Select Late Timecutter Models/Series with Cast Aluminum Axle’s.

Description

Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.

• PRODUCT NUMBER AND VARIATIONS:140-2713, 140 2713, 1402713
• PRODUCT TYPE:TORO OEM RED/POSITIVE BATTERY CABLE
• NOTES & DETAILS:Toro OEM 140-2713 Red Positive Battery Cable is Primarily Used Between the Battery and the Electrical Solenoid. 140 2713 Contains a Protective Boot for Positive Battery Post Eliminating the Possibilities of accidentally Creating a short Across the Battery Post which could Result in Injury, Fire & Damage as well as Protecting the Post from less Moisture Accumilation which can Encourage Corrosion Build-Up. 140 2713 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
• SIZE:12 in.
• COMMON SERIES APPLICATIONS: Select Late 34″ Timecutter Standard Models – 42″ Timecutter ZS, MX, 4200, Standard, My-Ride Models – 50″ Timecutter MX, 5000 Standard, My-Ride Models – 54″ Timecutter My-Ride Models – 60″ Timecutter Standard, My-Ride Models (All Models with Replaceable Cast Aluminum Axle’s).

• ASSOCIATED PARTS CHART:

BATTERY

1. 321-3 – HEX HEAD BOLT(Retains Battery Cable End or Eyelet to the Battery Post)x1 Per Positive Battery Eyelet or Post
2. 3256-22 – FLAT WASHER(Eliminates the Head of the Hex Head Bolt from being drawn in to the softer Battery Post and Supports the Battery Post Bolt)x1 Per Positive Battery Post Bolt
3. 32128-33 – FLANGE NUT(Retains Battery Cable End or Eyelet to the Battery Post)x1 Per Positive Battery Post

SOLENOID

1. 117-1197– SOLENOID(Retains the One End of the Battery Wire and Transfers Battery Current with the Different Functions of the Ignition Switch and Individual Safety Switch Circuits)x1 Per Unit
2. 3220-2– NUT(Retains Solenoid Cable End or Eyelet to the Solenoid Post)x1 Per Solenoid Post

• MODEL FIT CHART:

TIMECUTTER

TIMECUTTER 34 (STANDARD) Series Model Numbers75734, 77301

TIMECUTTER 42 ZS Series Model Numbers 74677, 74683, 74685, 74687

TIMECUTTER 42 MX Series Model Numbers 74690, 74691

TIMECUTTER 42 4200 & ZR 4200 Series Model Numbers74679, 75740

TIMECUTTER 42 (STANDARD) Series Model Numbers75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404

TIMECUTTER 42 (My-Ride) Series Model Numbers74692, 75743, 75745, 75747

TIMECUTTER 50 MX Series Model Numbers 74694, 74695

TIMECUTTER 50 5000 Series Model Numbers75751

TIMECUTTER 50 (STANDARD) Series Model Numbers75750, 75753

TIMECUTTER 50 (My-Ride) Series Model Numbers74696, 75755, 75759

TIMECUTTER 54 (My-Ride) Series Model Numbers75754, 75756, 75757

TIMECUTTER 60 (STANDARD) Series Model Numbers75760, 75762

TIMECUTTER 60 (My-Ride) Series Model Numbers 75763
