Description

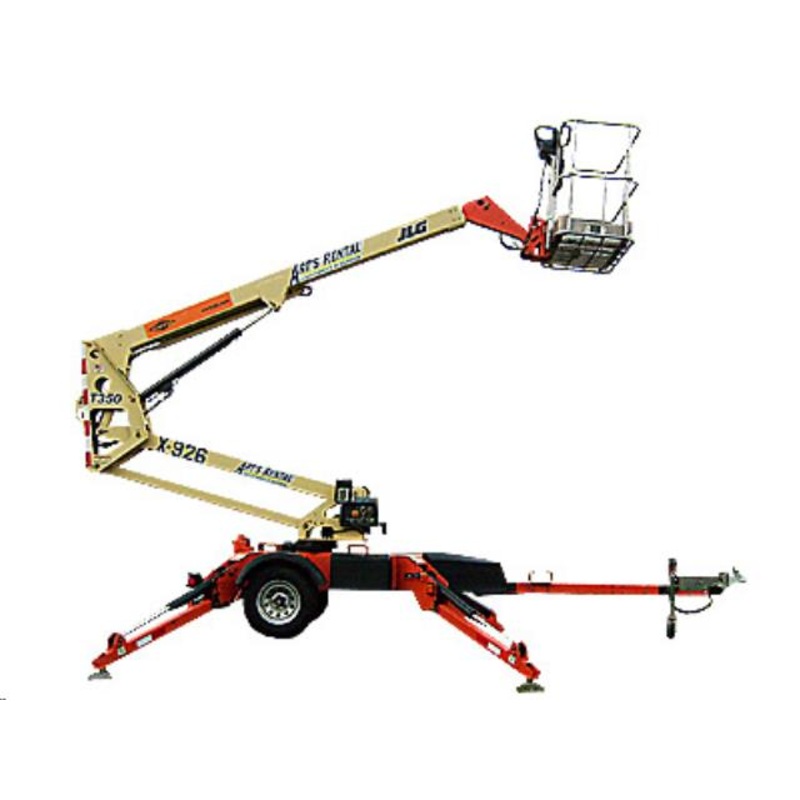

MODEL- JLG..T-350 BUCKET LIFT
- STOWED DIMENSIONS- L= 20′ 11″ / W= 4′ 9″ / H= 6′ 6″
- OUTRIGGER FOOTPRINT- L= 11′ 7″ / W= 10′ 6″
- WEIGHT- 3,400 lbs. / TONGUE WEIGHT- 242 lbs.
- WORKING HEIGHT- 40′
- BUCKET HEIGHT- 35′
- BUCKET REACH- 18′ 8″ Max.
- BUCKET SIZE- 30″ x 48″
- BUCKET CAPACITY- 500 lbs. (Hook Capacity 500)
- BOOM SWING- 410 (Non Continuous)
- GROUND PRESSURE- 22.5 lbs.
- LEVELING ABILITY- up to 11
- MAX TOWING SPEED- 65 MPH
- MAX WIND SPEED- 28 MPH
- POWER- 24 Volts DC (4) 6-Volt 220 Amp Hr. Batteries
- TRAILER BRAKES- Hydraulic Surge
